Shop WILKINS

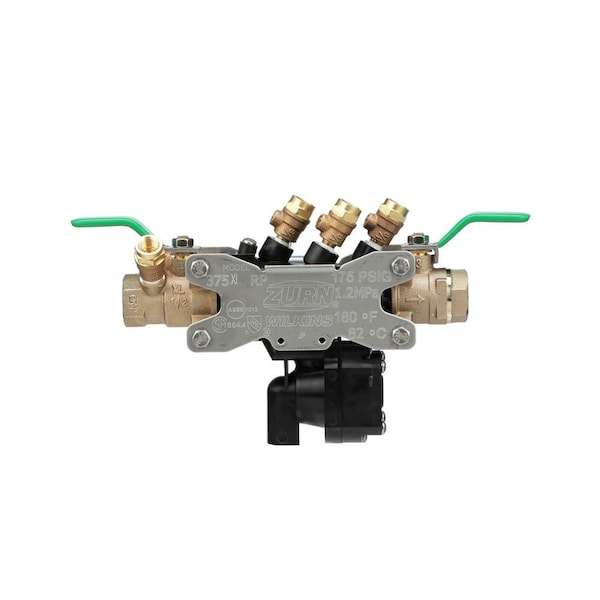

Pressure Principle Backflow Preventer

  • Mfr # 12-375

  • Zoro # G013342583

product price:
$
645.99
/ea
Free Shipping & Returns

Key Features

Body Material
Nylon
Includes
Reduced Pressure Principle Assembly
Spring Material
Stainless Steel
Flow
25 gpm
Standards
ANSI B1.20.1, ASSE Listed 1013, ASTM B 584, AWWA Compliant C511, Cross Connection Control and Hydraulic Research at the University of Southern California Approved, CSA Certified B64.4, cUPC Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12-375
Zoro #
G013342583
UPC #
612052101651
Country of Origin
United States

Dimensions

Overall Height
6.81 in
Overall Width
6 in
Connection Size - Side 1
1/2 in
Overall Length
8.88 in
Nominal Valve Size
1/2 in
Connection Size - Side 2
1/2 in
Wire Rope Length
8.88 in
Length
8.88 in

Details

Item
Pressure Principle Backflow Preventer
Body Material
Nylon
Includes
Reduced Pressure Principle Assembly
Spring Material
Stainless Steel
Flow
25 gpm
Standards
ANSI B1.20.1, ASSE Listed 1013, ASTM B 584, AWWA Compliant C511, Cross Connection Control and Hydraulic Research at the University of Southern California Approved, CSA Certified B64.4, cUPC Listed
Seat Material
Silicone
Maximum Pressure - Operating
175 psi
For Media
Potable Water
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
Operating Temperature - Minimum
33 Degrees F
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Seal Material
Rubber
Mounting Orientation
Horizontal
Includes Freeze Sensor
No Freeze Sensor
Connection Type - Side 1
NPT
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 2
Female
Hazard Protection Level
High Hazard
Shut-Off Valve Included
Ball Valve
Maximum Pressure - Steam
175 psi
Includes Strainer
No Strainer
Includes Flood Protection
No Flood Protection
Valve Series
375

Description

Pressure Principle Backflow Preventer
