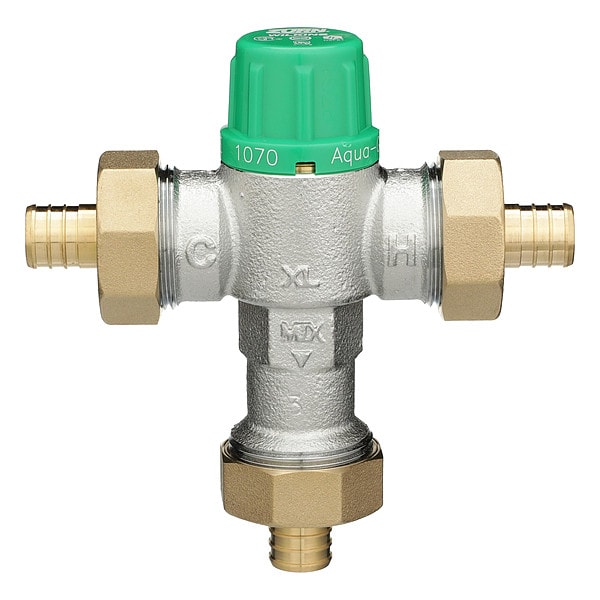

Wilkins Thermostatic Mixing Valve, 1/2 in Inlet 12-ZW1070XLPEX - main

Thermostatic Mixing Valve, 1/2 in Inlet

  • Mfr # 12-ZW1070XLPEX

  • Zoro # G808230330

product price: $286.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
Barb
Flow Rate
0.25 gpm to 10 gpm
Inlet Type
Barb
Max. Pressure
145 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12-ZW1070XLPEX
Zoro #
G808230330
UPC #
612052103471
Country of Origin
China

Dimensions

Inlet Size
1/2 in
Overall Height
5 9/16 in
Overall Length
5 9/16 in
Outlet Size
1/2 in
Overall Width
6 3/16 in
Outlet Connection Size
1/2 in
Inlet Connection Size - Cold
1/2 in
Inlet Connection Size - Hot
1/2 in

Details

Item
Thermostatic Mixing Valve
Outlet Type
Barb
Flow Rate
0.25 gpm to 10 gpm
Inlet Type
Barb
Max. Pressure
145 psi
For Use With
Hot Water Supply Systems
Valve Type
Thermostatic
Body Material
Cast Bronze
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Temp. Range
95 Degrees to 131 Degrees F
Compliance
ANSI 61-9, ASSE 1070, ASTM B 456, ASTM B 584, ASTM B 927, CSA B125.70, IAPMO, NSF, UNS C27450, XL Lead Free
Includes
Strainers
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Inlet Temperature (Cold)
39 Degrees to 80 Degrees F
Operating Temperature - Minimum Outlet
95 Degrees F
Inlet Temperature - Minimum Cold
39 Degrees F
Inlet Temperature - Maximum Hot
195 Degrees F
Inlet Connection Type - Cold
Barb
For Media
Hot Water, Water
Outlet Connection Type
Barb
Operating Pressure - Minimum
125 psi
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Maximum Cold
80 Degrees F
Operating Temperature - Maximum Outlet
115 Degrees F
Inlet Connection Type - Hot
Barb
Operating Pressure - Maximum
145 psi
Seal Material
FKM

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.25 gpm to 10 gpm, Inlet Type Barb, Outlet Type Barb, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 95 Degrees to 131 Degrees F, Max. Pressure 145 psi, Overall Height 5 9/16 in, Overall Width 6 3/16 in, Inlet Temperature (Cold) 39 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, For Use With Hot Water Supply Systems, Includes Strainers, Standards ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
