  11. Valve, 1" Pipe Size, Double Union FNPT

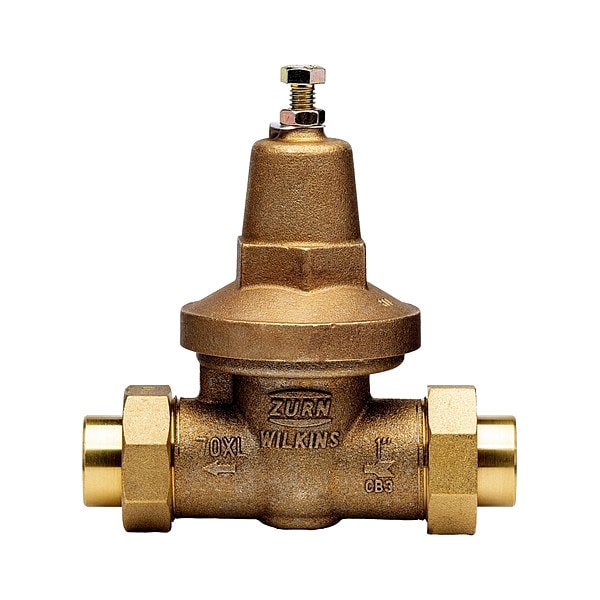

Wilkins Valve, 1" Pipe Size, Double Union FNPT 1-70XLDU - main

Valve, 1" Pipe Size, Double Union FNPT

  • Mfr # 1-70XLDU

  • Zoro # G3784632

product price: $298.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Inlet Size
1"
Connection Type
Double Union FNPT
Body Material
Bronze
Max. Pressure
300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-70XLDU
Zoro #
G3784632
UPC #
612052076478
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
1"
Inlet Size
1"
Height
6 11/16 in
Length
5 7/8 in
Overall Height
6 1/2 in
Outlet Connection Size
1 in
Overall Width
3 5/16 in
Inlet Connection Size
1 in

Details

Connection Type
Double Union FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Application
Residential and Commercial
Material
Lead Free Bronze
Pressure Adjustment Range
25 to 75 psi
Strainer
Yes
Preset Pressure Settings
50 psi
Valve Type
Standard
Compliance
ANSI/NSF 61
Standards
ASSE 1003, CSA, IAPMO, NSF
Factory Set Pressure
50 psi
Seat Material
Stainless Steel
Pilot Adjustment - Maximum
75 psi
Union Type
Double
Fluid Temperature - Maximum
140 Degrees F
Port Design
Full Port
Outlet Connection Type
NPT
Includes Strainer
Strainer Included
Operating Pressure - Maximum
300 psi
Inlet Connection Gender
Female
Inlet Connection Type
NPT
Pilot Adjustment - Minimum
25 psi
Flow Rate - Continuous Maximum
42.3 gpm
Operating Pressure - Minimum
25 psi
For Media
Water
Outlet Connection Gender
Female
NSF Certifications for Food and Drinking Water
NSF 61
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating

Description

Valve,1" Pipe Size,Double Union FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
