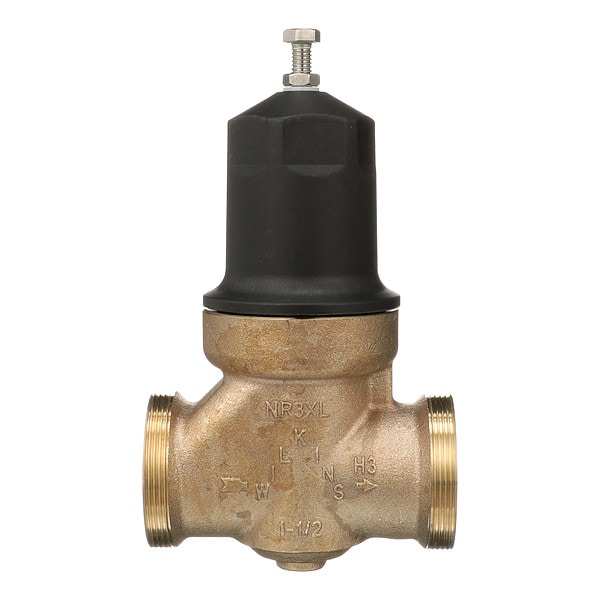

Wilkins Water Pressure Reducing Valve 112-NR3XL - main

Water Pressure Reducing Valve

  • Mfr # 112-NR3XL

  • Zoro # G208230398

product price: $1,058.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/2 in
Connection Type
FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112-NR3XL
Zoro #
G208230398
UPC #
612052069524
Country of Origin
China

Dimensions

Pipe Size
1 1/2 in
Length
6 5/16 in
Overall Height
4 13/16 in
Height
8 1/2 in
Overall Width
8 5/16 in
Outlet Connection Size
1 1/2 in
Inlet Connection Size
1 1/2 in

Details

Connection Type
FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Seat Material
EPDM
Factory Set Pressure
50 psi
Valve Type
Pressure Reducing
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 6
Material
Low Lead Cast Bronze
Preset Pressure Settings
50 psi
Application
Commercial Use, Residential Use
Strainer
Yes
Disc Material
Elastomer
Pressure Adjustment Range
25 to 75 psi
Standards
ASSE 1003, CSA, IAPMO
Operating Pressure - Maximum
300 psi
Fluid Temperature - Maximum
140 Degrees F
Flow Rate - Continuous Maximum
77.4 gpm
Outlet Connection Type
NPT
Port Design
Full Port
Inlet Connection Gender
Female
Union Type
Single
Operating Pressure - Minimum
25 psi
Includes Strainer
Strainer Included
NSF Certifications for Food and Drinking Water
NSF 61
Inlet Connection Type
NPT
Outlet Connection Gender
Female
For Media
Water
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Pilot Adjustment - Maximum
75 psi
Pilot Adjustment - Minimum
25 psi

Description

Water Pressure Reducing Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
