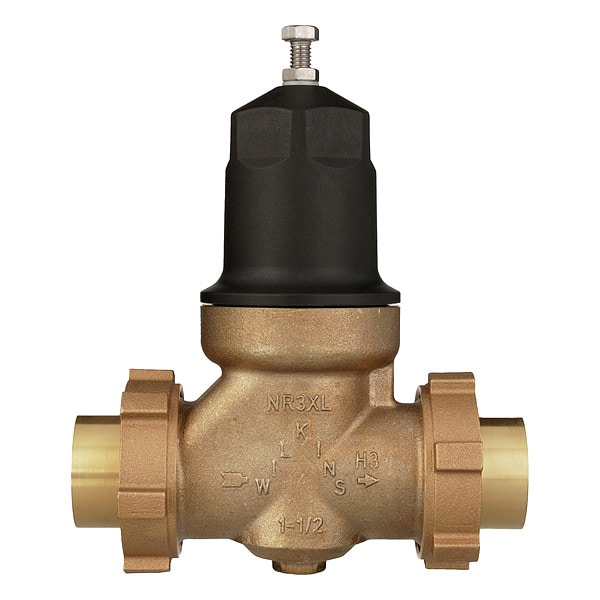

Wilkins Water Pressure Reducing Valve 112-NR3XLDUC - main

Water Pressure Reducing Valve

  • Mfr # 112-NR3XLDUC

  • Zoro # G208230343

product price: $1,096.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/2 in
Connection Type
Double Union
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112-NR3XLDUC
Zoro #
G208230343
UPC #
612052078212
Country of Origin
China

Dimensions

Pipe Size
1 1/2 in
Length
7 1/2 in
Height
8 1/2 in
Overall Height
4 13/16 in
Outlet Connection Size
1 1/2 in
Overall Width
8 5/16 in
Inlet Connection Size
1 1/2 in

Details

Connection Type
Double Union
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 6
Application
Commercial Use, Residential Use
Material
Low Lead Cast Bronze
Disc Material
Elastomer
Factory Set Pressure
50 psi
Valve Type
Pressure Reducing
Preset Pressure Settings
50 psi
Strainer
Yes
Seat Material
EPDM
Pressure Adjustment Range
25 to 75 psi
Standards
ASSE 1003, CSA, IAPMO
Pilot Adjustment - Minimum
25 psi
Operating Pressure - Minimum
25 psi
Pilot Adjustment - Maximum
75 psi
Includes Strainer
Strainer Included
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
For Media
Water
NSF Certifications for Food and Drinking Water
NSF 61
Inlet Connection Type
NPT
Union Type
Double
Flow Rate - Continuous Maximum
77.4 gpm
Fluid Temperature - Maximum
140 Degrees F
Operating Pressure - Maximum
300 psi
Inlet Connection Gender
Female
Port Design
Full Port

Description

Water Pressure Reducing Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
