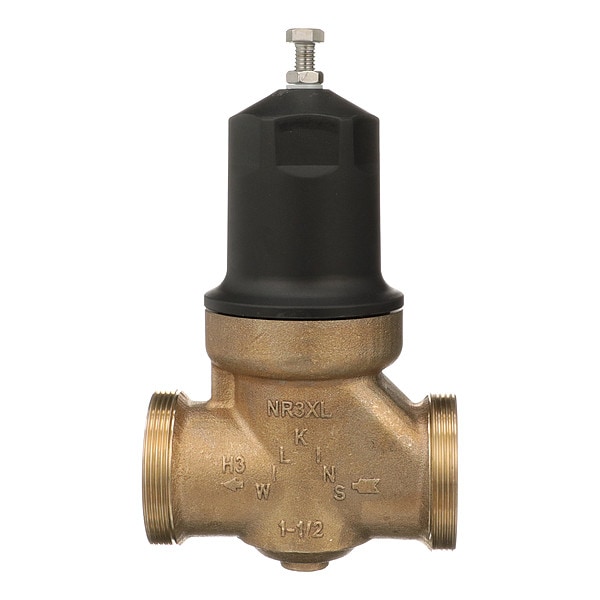

Wilkins Water Pressure Reducing Valve 112-NR3XLDULU - main

Water Pressure Reducing Valve

  • Mfr # 112-NR3XLDULU

  • Zoro # G308230366

product price: $1,016.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/2 in
Connection Type
FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112-NR3XLDULU
Zoro #
G308230366
UPC #
612052075822
Country of Origin
China

Dimensions

Pipe Size
1 1/2 in
Overall Height
4 13/16 in
Height
8 1/2 in
Length
5 in
Overall Width
8 5/16 in
Outlet Connection Size
1 1/2 in
Inlet Connection Size
1 1/2 in

Details

Connection Type
FNPT
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Disc Material
Elastomer
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 6
Application
Commercial Use, Residential Use
Preset Pressure Settings
50 psi
Material
Low Lead Cast Bronze
Pressure Adjustment Range
25 to 75 psi
Standards
ASSE 1003, CSA, IAPMO
Seat Material
EPDM
Factory Set Pressure
50 psi
Strainer
Yes
Valve Type
Pressure Reducing
Operating Pressure - Maximum
300 psi
Flow Rate - Continuous Maximum
77.4 gpm
Inlet Connection Type
NPT
Outlet Connection Gender
Female
Fluid Temperature - Maximum
140 Degrees F
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Pilot Adjustment - Minimum
25 psi
Port Design
Full Port
Inlet Connection Gender
Female
Outlet Connection Type
NPT
Pilot Adjustment - Maximum
75 psi
For Media
Water
Union Type
No Union
NSF Certifications for Food and Drinking Water
NSF 61
Includes Strainer
Strainer Included
Operating Pressure - Minimum
25 psi

Description

Water Pressure Reducing Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
