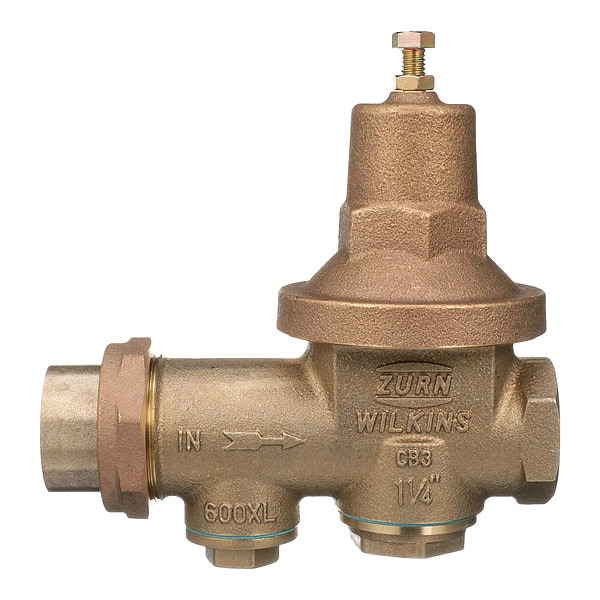

Wilkins Water Pressure Reducing Valve 114-600XLHR - main

Water Pressure Reducing Valve

  • Mfr # 114-600XLHR

  • Zoro # G008230376

product price: $987.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Pipe Size
1 1/4 in
Connection Type
Single Union
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114-600XLHR
Zoro #
G008230376
UPC #
612052094038
Country of Origin
United States

Dimensions

Pipe Size
1 1/4 in
Overall Height
8 in
Length
7 1/8 in
Height
8 in
Overall Width
3 13/16 in
Outlet Connection Size
1 1/4 in
Inlet Connection Size
1 1/4 in

Details

Connection Type
Single Union
Body Material
Cast Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Standards
ASSE 1003, City of Los Angeles Approved, CSA, IAPMO
Factory Set Pressure
50 psi
Seat Material
Stainless Steel
Material
Low Lead Cast Bronze
Compliance
ASSE 1003, City of Los Angeles, CSA, IAPMO, NSF/ANSI/CAN 6
Strainer
Yes
Valve Type
Pressure Reducing
Application
Commercial Use, Residential Use
Includes
Strainer
Preset Pressure Settings
50 psi
Operating Pressure - Maximum
300 psi
Operating Pressure - Minimum
25 psi
Inlet Connection Type
NPT
Outlet Connection Gender
Female
Includes Strainer
Strainer Included
Inlet Connection Gender
Female
Flow Rate - Continuous Maximum
54.7 gpm
Pilot Adjustment - Maximum
75 psi
Fluid Temperature - Maximum
140 Degrees F
Union Type
Single
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Outlet Connection Type
NPT
NSF Certifications for Food and Drinking Water
NSF 61
For Media
Water
Pilot Adjustment - Minimum
25 psi
Port Design
Full Port

Description

Water Pressure Reducing Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
