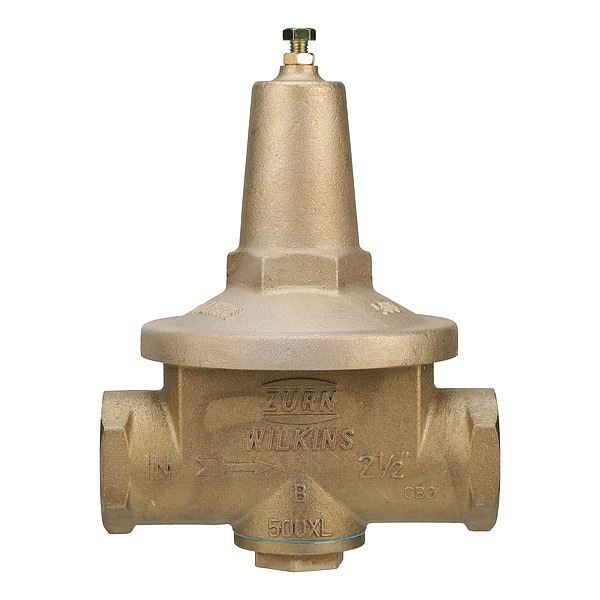

Water Pressure Reducing Valve, 2-1/2 In.

  • Mfr # 212-500XL

  • Zoro # G5064236


product price: $4,336.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2 1/2"
Inlet Size
2 1/2"
Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
212-500XL
Zoro #
G5064236
UPC #
612052067575
Country of Origin
China

Dimensions

Pipe Size
2 1/2"
Inlet Size
2 1/2"
Length
10 in
Height
14 1/2 in
Overall Height
14 3/8 in
Overall Width
8 in
Outlet Connection Size
2 1/2 in
Inlet Connection Size
2 1/2 in

Details

Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Pressure Adjustment Range
25 to 75 psi
Material
Low Lead Bronze
Application
Commercial or Industrial Pressure Reduction
Valve Type
Standard
Preset Pressure Settings
50 psi
Standards
Annex G, Annex G NSF International, ASSE Listed 1003, Lead Plumbing Law IAPMO R&T, NSF 61
Strainer
No
Material of Construction
Low Lead Cast Bronze
Connection
Union x FNPT
Factory Set Pressure
50 psi
Union Type
No Union
Outlet Connection Gender
Female
Includes Strainer
Strainer Not Included
Operating Pressure - Maximum
300 psi
Fluid Temperature - Maximum
140 Degrees F
Pilot Adjustment - Minimum
25 psi
Operating Pressure - Minimum
25 psi
Pilot Adjustment - Maximum
75 psi
For Media
Water
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating
Flow Rate - Continuous Maximum
249.9 gpm
Inlet Connection Gender
Female
Port Design
Full Port
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Inlet Connection Type
NPT
Outlet Connection Type
NPT

Description

Water Pressure Reducing Valve, Material of Construction Low Lead Cast Bronze, Inlet/Outlet 2-1/2 In., Union x FNPT Connection, Max. Working Pressure (PSI) 300, Adjustable Range 25 to 75 psiMax. Temp. (F) 140 Degrees , Height (In.) 14-1/2, Length (In.) 10, Certification Lead Plumbing Law Certified by IAPMO R&T, Annex G Certified by NSF International, Standards NSF listed -Standard 61, annex G, Compliance ASSE listed 1003
