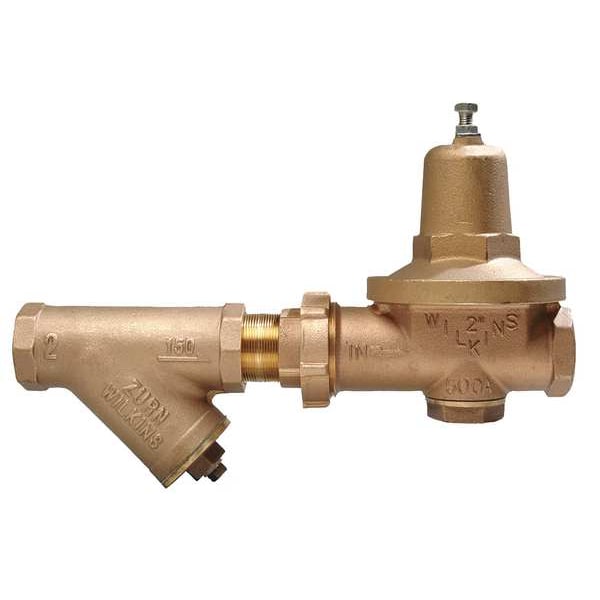

Wilkins Water Pressure Reducing Valve, 2 In. 2-500XLYSBR - main

Water Pressure Reducing Valve, 2 In.

  • Mfr # 2-500XLYSBR

  • Zoro # G5064324

product price: $2,933.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Inlet Size
2"
Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
300 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-500XLYSBR
Zoro #
G5064324
UPC #
612052075662
Country of Origin
United States

Dimensions

Pipe Size
2"
Inlet Size
2"
Height
13 1/2 in
Length
18 5/8 in
Overall Height
16 1/2 in
Inlet Connection Size
2 in
Overall Width
13 in

Details

Connection Type
FNPT x FNPT
Body Material
Bronze
Max. Pressure
300 psi
Max. Temp.
140 Degrees F
Item
Water Pressure Reducing Valve
Standards
Annex G, Annex G NSF International, ASSE Listed 1003 , City of Los Angeles, CSA, IAPMO, Lead Plumbing Law IAPMO R&T, NSF 61
Strainer
No
Application
Commercial or Industrial Pressure Reduction
Material
Low Lead Bronze
Preset Pressure Settings
50 psi
Valve Type
Standard
Pressure Adjustment Range
25 to 75 psi
Material of Construction
Low Lead Cast Bronze
Connection
Union x FNPT
Factory Set Pressure
50 psi
Union Type
Single
Operating Pressure - Maximum
300 psi
Pilot Adjustment - Minimum
25 psi
Includes Strainer
Strainer Included
Outlet Connection Gender
Female
NSF Certifications for Food and Drinking Water
NSF 372, NSF 61
Fluid Temperature - Maximum
140 Degrees F
Inlet Connection Type
NPT
Operating Pressure - Minimum
25 psi
Inlet Connection Gender
Female
For Media
Water
Outlet Connection Type
NPT
Flow Rate - Continuous Maximum
100.1 gpm
Port Design
Full Port
Pilot Adjustment - Maximum
75 psi
Coating/Lining
NSF Listed Fusion Bonded Epoxy Lining and Coating

Description

Water Pressure Reducing Valve, Material of Construction Low Lead Cast Bronze, Inlet/Outlet 2 In., Union x FNPT Connection, Max. Working Pressure (PSI) 300, Adjustable Range 25 to 75 psi, Pressure Setting 50 psi, Max. Temp. (F) 140 Degrees , Height (In.) 13-1/2, Length (In.) 18-5/8, Certification Lead Plumbing Law Certified by IAPMO R&T, Annex G Certified by NSF International, CSA, Standards NSF listed -Standard 61, annex G, Compliance ASSE listed 1003 , IAPMO, City of Los Angeles
