Shop WINTERS

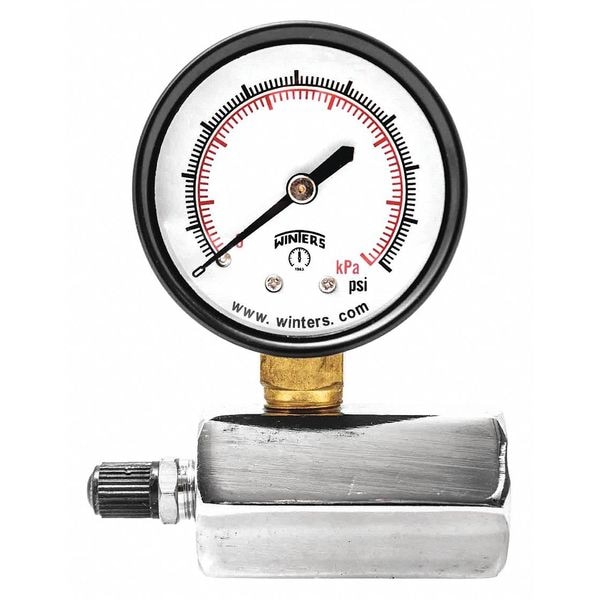

Gas Test Gauge, 0 to 160 psi, 2 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PETG205

  • Zoro # G6631191

product price:
$
10.89
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
3/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PETG205
Zoro #
G6631191
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
3/4 in
Dial Size (In.)
2 in
Length
3.660"
Nominal Dial Size
2 in
Manufacturer Warranty Length
5 yr
Case Diameter
2.035 in
Case Depth
1.1 in
Gauge Case Depth
1.1 in
Gauge Case Diameter
2.035 in
Nominal Dial Diameter
2 in

Details

Item
Gas Test Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial, Residential
Gauge Case Material
Steel
Series
PET
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
Liquid-Filled Case
No
Includes
Bleed Port
Gauge Application
Residential and Commercial Pressure Testing of Natural Gas Air and Water Lines, Suitable for Non-Clogging and Non-Corroding Media
Gauge Primary Range Smallest Graduation
5
Case Color
Black
Socket Material
Brass
Gauge Primary Range Numbered Graduations
5
Calibration Certificate Included
No
Smallest Graduation
5 psi
Graduations
5 psi
Gauge Secondary Range Values
0 to 1000
Connection Type
NPTF
Standards
ASME, CRN
Pointer Material
Aluminum
Secondary Pressure Range
0 to 1,100
Process Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Scale
Mid-Scale
Sensor Material
Bronze
Dial Color
White
Dial Face Material
Aluminum
Compatible Process Media
Air, Gas, Water
Pressure Range Type
Pressure
Case Finish
Painted
Sensor Type
Bourdon Tube
Scale Type
Dual
Pressure Gauge Type
Air Over Water Test Gauge
Secondary Scale Units
kPa
Accuracy Grade
ASME B40.100 Grade B
Freeze Resistant Movement
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Maximum Pressure
160 psi
Process Connection Gender
Female
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
Gauge Case Finish
Painted

Description

Pressure Gauge, General Purpose, 2 In., Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Brass / Bronze, 3/4 In., MNPT, Gauge Connection Location Bottom, 0 to 160, psi, Gauge Secondary Range Units kPa, Gauge Secondary Range Values 0 to 1000, +/-3-2-3 Percent, Gauge Panel Mountable No, Liquid Filled No, Gauge Primary Range Smallest Graduation 5, Gauge Case Material Steel, Gauge Primary Range Numbered Graduations 5, Gauge Case Color Black, Calibration Certificate Included No
