  5. Industrial Compound Gauge, 30 to 0 to 30 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

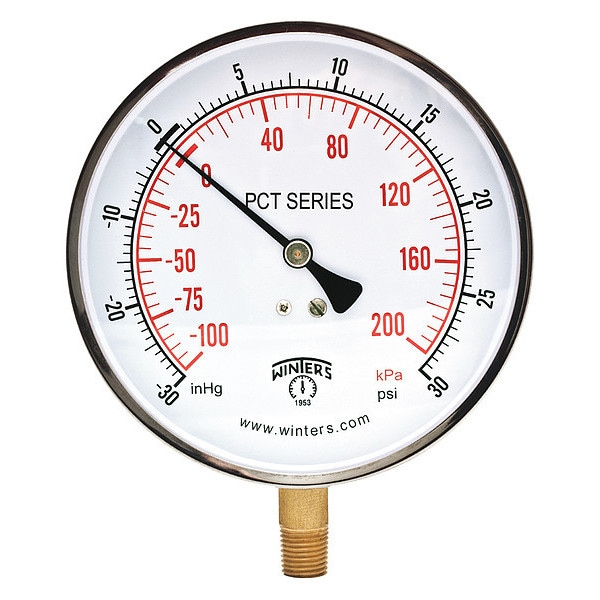

Winters Industrial Compound Gauge, 30 to 0 to 30 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PCT329 - main

Industrial Compound Gauge, 30 to 0 to 30 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PCT329

  • Zoro # G1604353

product price:  $17.69
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PCT329
Zoro #
G1604353
UPC #
628311251012
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Diameter
4.92 in
Manufacturer Warranty Length
5 yr
Case Depth
1.18 in
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
304 Stainless Steel
Series
PCT
Lens Material
Acrylic
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Connection Type
MNPT
Case Material
304 Stainless Steel
Socket Material
Brass
For Use With
Media Compatible with Bronze
Case Color
Metallic
Calibration Certificate Included
No
Standards
ASME, CRN
Smallest Graduation
1 in Hg/0.5 psi/5 kPa
Gauge Special Options
Zero Adjustment Screw
Gauge Primary Range Smallest Graduation
5/1/10
Gauge Secondary Range Values
0 to 70,000
Gauge Primary Range Numbered Graduations
10/5/50
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Bezel Material
304 Stainless Steel
Accuracy Scale
Full Scale
Compatible Process Media
Air, Steam, Water
Pressure Range Type
Compound
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Process Temperature Range
-40 Degrees to 200 Degrees F
Dry Dampening Feature
None
Accuracy Grade
ASME B40.100 Grade 1A
Pointer Color
Black
Sensor Type
Bourdon Tube
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Vibration Resistance
None
Removable Bezel
No
Pointer Material
Aluminum
Sensor Material
Phosphor Bronze
Pressure Gauge Type
Industrial Pressure Gauge
Field Fillable
No
Non-Sparking
No
Dial Face Material
Aluminum
Process Connection Gender
Male
Dial Color
White
Scale Type
Single
Gauge Case Liquid
None
Includes Vent Plug
No
Case Construction
Welded Joint
Over-Pressure Limit
25%
Movement Material
Brass
Secondary Scale Units
gpm
Operating Temperature Range
-40 Degrees to 200 Degrees F
IP Rating
IP52
Case Liquid
None
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Operating Temperature - Maximum
200 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
200 kPa
Primary Scale Pressure Measurement - Maximum
30 psi
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
5
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
