  5. Industrial Pressure Gauge, 0 to 100 psi, 4 in Dial, 1/4 in NPT, Bottom Location, PBT Case Material

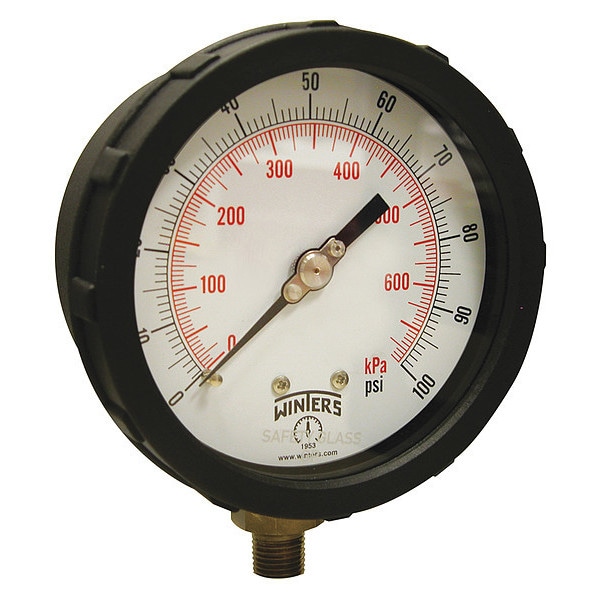

Winters Industrial Pressure Gauge, 0 to 100 psi, 4 in Dial, 1/4 in NPT, Bottom Location, PBT Case Material PCC604C - main

Industrial Pressure Gauge, 0 to 100 psi, 4 in Dial, 1/4 in NPT, Bottom Location, PBT Case Material

  • Mfr # PCC604C

  • Zoro # G1937781

product price:  $42.39
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PCC604C
Zoro #
G1937781
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Case Diameter
3.94 in
Nominal Dial Size
4 in
Manufacturer Warranty Length
5 yr
Case Depth
2.28 in
Nominal Dial Diameter
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Process Industries
Gauge Case Material
PBT
Series
PCC
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Special Options
IP65 Protection Rating
Gauge Primary Range Smallest Graduation
5/50
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
10/100
Smallest Graduation
1 psi/10 kPa
For Use With
Media Compatible with Bronze
Gauge Secondary Range Values
0 to 690
Case Color
Black
Case Material
PBT
Socket Material
Brass OT58
Standards
ASME, CRN
Connection Type
MNPT
Over-Pressure Limit
25%
Vibration Resistance
Field-Fillable
Includes Vent Plug
Yes
Gauge Case Liquid
None
Secondary Scale Units
kPa
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Material
Aluminum
Scale Type
Dual
Bezel Gasket Material
Silicone
Case Construction
Welded Joint
Includes Mounting Hardware
No
Non-Sparking
No
Pointer Color
Black
Dry Dampening Feature
None
Pressure Range Type
Pressure
Accuracy Scale
Full Scale
Sensor Material
Phosphor Bronze
Movement Material
Brass OT59
Sensor Type
Bourdon Tube
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Accuracy Grade
ASME B40.100 Grade 1A
Process Temperature Range
-40 Degrees to 200 Degrees F
Removable Bezel
No
Bezel Material
Polybutylene Terephthalate
Secondary Pressure Range
0 to 690
Field Fillable
Yes
Process Connection Gender
Male
Cleaned for Oxygen Service
No
Dial Face Material
Aluminum
Dial Color
White
Operating Temperature Range
-40 Degrees to 200 Degrees F
Compatible with Brand
Universal
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
100 psi
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
None
Secondary Scale Pressure Measurement - Maximum
690 kPa
Operating Temperature - Maximum
200 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.0 Percent, Gauge Case Material PBT, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
