  5. Lead-Free Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

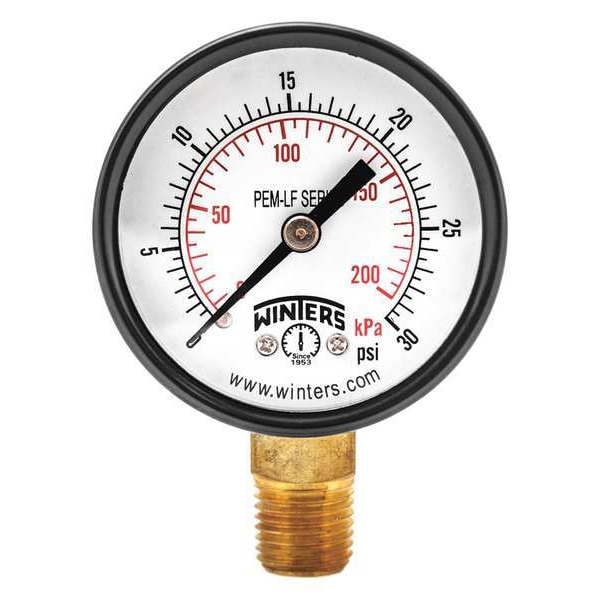

Winters Lead-Free Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material PEM199LF - main

Lead-Free Pressure Gauge, 0 to 30 psi, 2 in Dial, 1/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # PEM199LF

  • Zoro # G9756582

product price:  $7.25
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM199LF
Zoro #
G9756582
UPC #
628311202427
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Length
2.992"
Nominal Dial Size
2 in
Manufacturer Warranty Length
5 yr
Case Depth
1.161 in
Case Diameter
2.19 in
Nominal Dial Diameter
2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Calibration Certificate Included
No
Required Gauge Adapter
No
Case Color
Black
Characteristics
Friction Bezel Ring
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Standards
ANSI/ASME, CRN, NSF
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Sensor Type
Bourdon Tube
Dry Dampening Feature
None
Process Temperature Range
-40 Degrees to 150 Degrees F
Freeze Resistant Movement
No
Over-Pressure Limit
25% of Full Scale
Cleaned for Oxygen Service
No
Accuracy Grade
Grade B
Vibration Resistance
None
Field Fillable
No
Scale Type
Dual
Movement Material
Stainless Steel
Case Construction
Welded Joint
Case Finish
Painted
Sensor Material
Phosphor Bronze
Dial Color
White
Includes Vent Plug
No
Removable Bezel
No
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Accuracy Scale
Mid-Scale
Gauge Case Liquid
None
Non-Sparking
No
Bezel Material
Steel
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pressure Range Type
Pressure
Includes Mounting Hardware
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Pointer Color
Black
Process Connection Gender
Male
Secondary Scale Units
kPa
Dial Face Material
Aluminum
Pointer Material
Aluminum
Secondary Pressure Range
0 to 200
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F
IP Rating
IP52
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
NEMA Enclosure Rating
5
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Maximum
200 kPa
Compatible with Brand
Universal
Case Liquid
None

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
