  5. Process Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

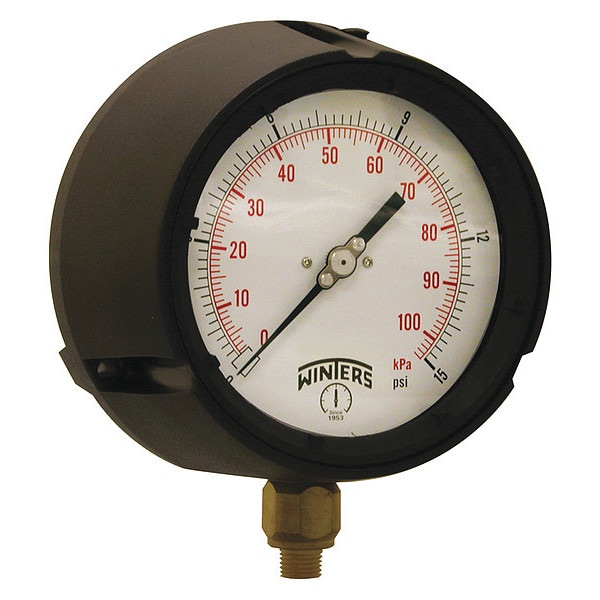

Winters Process Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PPC5081-G-SG. - main

Process Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PPC5081-G-SG.

  • Zoro # G6756104

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PPC5081-G-SG.
Zoro #
G6756104
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Bolt Circle Diameter
5.39 in
Case Depth
3.4 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 1/2 in
Case Diameter
5.835 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Process Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Chemical Industries, Oil and Gas Industry, Power Industries, Process Industries
Gauge Case Material
Phenolic
Series
PPC
Lens Material
Safety Glass
Primary Pressure Range
0 to 15
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Case Color
Black
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
1/5
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 100
Gauge Special Options
Heavy Duty
Case Material
Phenolic
Features
Pressure Relief Back, Solid Front
Socket Material
Brass OT58
Standards
ASME, CRN
Connection Type
MNPT
Gauge Case Liquid
Glycerin
Secondary Scale Units
kPa
Vibration Resistance
Liquid-Filled
Accuracy Grade
ASME B40.100 Grade 2A
Scale Type
Dual
Secondary Pressure Range
0 to 100
Pressure Range Type
Pressure
Pointer Material
Aluminum
Non-Sparking
No
Panel Mount Characteristics
3 0.240 in Dia Holes on 5.390 in Dia Bolt Circle
Bezel Gasket Material
Silicone
Over-Pressure Limit
25%
Sensor Material
Phosphor Bronze
Cleaned for Oxygen Service
No
Sensor Type
Bourdon Tube
Process Temperature Range
-40 Degrees to 250 Degrees F
Pointer Color
Black
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Removable Bezel
No
Bezel Material
Phenolic
Freeze Resistant Movement
No
Pointer Characteristics
Micrometer Adjustable
Field Fillable
No
Process Connection Gender
Male
Includes Mounting Hardware
No
Includes Vent Plug
No
Dial Face Material
Aluminum
Pressure Gauge Type
Process Pressure Gauge
Case Construction
Solid Wall
Movement Material
304 Stainless Steel
Compatible Process Media
Chemicals, Highly Corrosive Media
Dry Dampening Feature
None
Dial Color
White
Accuracy Scale
Full Scale
Operating Temperature Range
-4 Degrees to 150 Degrees F
IP Rating
IP65
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Compatible with Brand
Universal
Process Media Temperature - Maximum
250 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
100 kPa
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Maximum
15 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
4

Description

Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Phenolic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Safety Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 15, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Process Pressure Gauge
