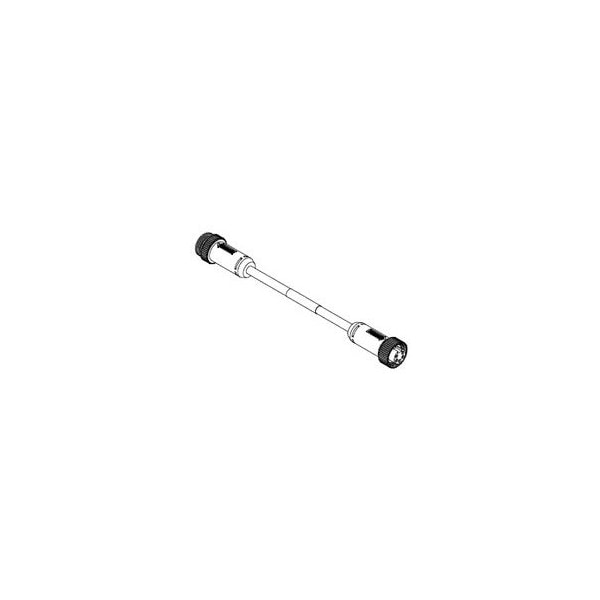

Sensor Cables / Actuator Cables Mc 5P M/Mfe 5M St/St Devicenet

  • Mfr # 1300250295

  • Zoro # G405786308


product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Wire Size
22 AWG
Cable Length
5 m
Insulation Material
PVC
Cable Jacket Material
PVC
Maximum Voltage
300 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1300250295
Zoro #
G405786308
UPC #
-
Country of Origin
Poland

Dimensions

Wire Size
22 AWG
Cable Length
5 m
Length
16.4 ft
Cable Diameter
7.24mm (.285")

Details

Item
Cordset
Insulation Material
PVC
Cable Jacket Material
PVC
Maximum Voltage
300 V AC/DC
IP Rating
IP67
Max. Amps
4 A
Maximum Operating Temperature
80 Degrees C
Material
PVC
Color
Gray
Max. Voltage
300V AC/DC
Connector Type
Female-Male
Series
130025
Standards
CSA Certified; UL E152210
Contact Finish
Gold Plated
Type
Double Ended
Orientation
Straight to Straight
CSA
LR6837
Wire/Cable Type
Thin (Drop)
Material - Coupling Nut
Die-Cast Zinc
Material - Connector Body
TPE
LED Indicator
No
Current - Maximum per Contact
4.0A
Material - Contact
Brass
UL
E152210
Temperature Range - Operating
-20° to +80°C
Connector End B
Mini-Change
Material - Plating Mating
Gold
Poles
5
Product Name
DeviceNet Trunk,Mini-Change
Coupling Style
Threaded
Connector End A
Mini-Change
Keyway
Single
