Zoeller

Silent PVC Full Flow Check Valve 1-1/2"

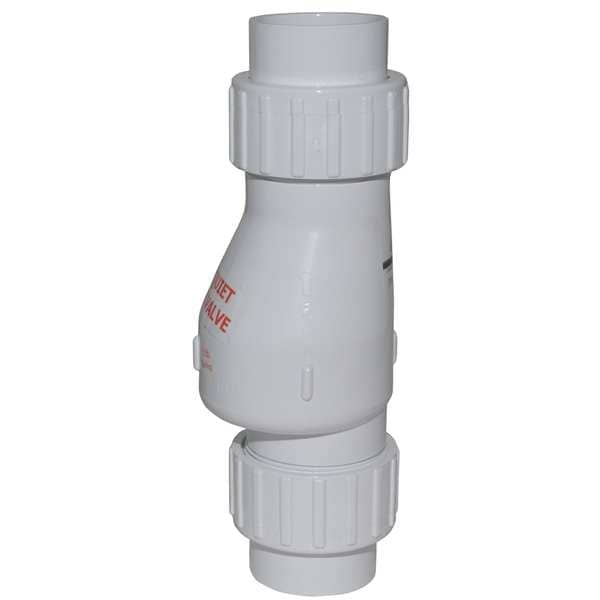

Zoeller Silent PVC Full Flow Check Valve 1-1/2" 30-0040
Hover or click to zoom Tap to zoom
$28.50
  • Pipe Size: 1 1/2"
  • Connection Type: Solvent Weld
  • Body Material: PVC
See full product details
Orders over $75 ship free.

Total: $28.50

Zoeller #30-0040 Specifications

  • Pipe Size: 1 1/2"
  • Connection Type: Solvent Weld
  • Body Material: PVC
  • Material of Construction: PVC
  • Full Flow - Valves: Yes
  • Body Material - Valves: PVC
  • Max. Water Pressure - Valves: 50 psi @ 130 Degrees F
  • Mounting Orientation - Check Valves: Horizontal, Vertical
  • Item - Check Valves: Check Valve
  • Flow Design: Single
  • Max. Pressure: 50 psi
  • Seat Material - Check Valves: PVC
  • Application - Valves: Pumps
  • Seal Material: Rubber
  • Flow: Full Flow
  • Length: 9-1/2"
  • Seat Material: PVC
  • Max. Steam Pressure - Valves: Not Rated
  • Mechanism and Body Design: Inline Swing
  • Spring Material - Check Valves: Stainless Steel
  • Connection Type - Check Valves: Solvent Weld x Solvent Weld
  • Size: 1 1/2"
  • Seal Material - Check Valves: Rubber
  • Max. Temp.: 130 Degrees F
  • Item: Full Flow Check Valve
  • Max. Temp. - Valves: 130 Degrees F
  • Mounting Position: Vertical or Horizontal
  • Pipe or Tube Size - Check Valves: 1 1/2 in
  • Sub-Category: PVC
  • Spring Material: Stainless Steel
  • Mounting Orientation: Horizontal, Vertical
  • Pipe or Tube Size: 1 1/2 in
  • Length (Straight Wireway): 9 5/8 in
  • Country of Origin (subject to change): United States

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves PVC, Pipe or Tube Size 1 1/2 in, Connection Type Solvent Weld x Solvent Weld, Mounting Orientation Horizontal, Vertical, Seal Material Rubber, Max. Temp. - Valves 130 Degrees F, Max. Water Pressure - Valves 50 psi @ 130 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material PVC, Spring Material Stainless Steel, Full Flow - Valves Yes, Application - Valves Pumps
