  9. Waste-Mate 2 HP 2" Manual Submersible Sewage Pump 230V

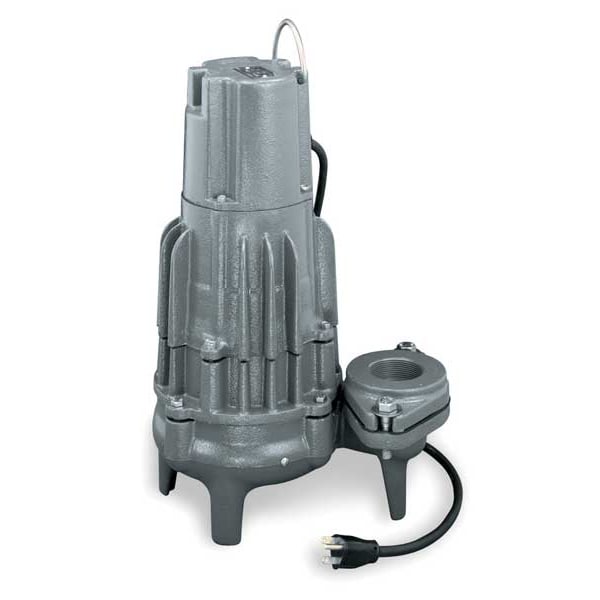

Zoeller Waste-Mate 2 HP 2" Manual Submersible Sewage Pump 230V 295-0004 - main

Waste-Mate 2 HP 2" Manual Submersible Sewage Pump 230V

  • Mfr # 295-0004

  • Zoro # G2347195

product price: $1,707.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.

Key Features

HP
2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
295-0004
Zoro #
G2347195
UPC #
053514093778
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Manufacturers Warranty Length
1 yr
Cord Length
20 ft
Cord Length - Pumps
15 ft.
Height
21-3/16"
Diameter
12-7/8"
Min. Sump Pit Dia.
24 in
Discharge Dia.
2 in
Overall Height
21 1/4 in
Body Dia.
12 7/8 in
Discharge Diameter
2 in
Width at Widest Point
12 7/8 in
Body Diameter
12 7/8 in
Sump Pit Diameter - Minimum
24 in
Solids Diameter - Maximum
2 in

Details

HP
2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
199 gpm
Max. Head
75 ft
Impeller Material
Cast Iron
GPM of Water @ 50 Ft. of Head
89
Max. Head - Pumps
75 ft.
Item
Sewage Ejector Pump
Thermal Protection
Yes
Discharge NPT
2"
Agency Compliance
CSA Certified, UL Listed
Pump Type
Manual
Input Phase AC
1
Bearing Type
Ball
Motor Type
Hermetically-Sealed, Oil-Filled
GPM of Water @ 10 Ft. of Head
199
GPM of Water @ 15 Ft. of Head
184
Switch Type - Pumps
No Switch Included
Shaft Seal Material - Pumps
Carbon, Ceramic
Amps
16.60 A
Max. Liquid Temp.
130 Degrees F
GPM of Water @ 5 Ft. of Head
214
Switch Type
None
GPM of Water @ 30 Ft. of Head
140
Shaft Seal
Carbon/Ceramic
GPM of Water @ 25 Ft. of Head
154
Amps - Pumps
16.60
Impeller Material - Pumps
Cast Iron
GPM of Water @ 70 Ft. of Head
23
Motor RPM
3450
GPM of Water @ 20 Ft. of Head
168
Pump Body Material
Cast Iron
Phase
Single
GPM of Water @ 40 Ft. of Head
115
Voltage - Pumps
240VAC
Housing Material
Cast iron
Voltage
230
GPM of Water @ 60 Ft. of Head
59
Item - Sewage Pumps
Submersible Sewage Pump
RPM
3,450 RPM
Discharge
2 in FNPT
Rated Voltage
230V AC
Flow Rate @ 15 Ft. of Head
186 gpm
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
173 gpm
Discharge Gender
Female
Flow Rate @ 60 Ft. of Head
66 gpm
Flow Rate @ 40 Ft. of Head
124 gpm
Duty Cycle
Continuous
Switch Electrical Connection
No Switch Included
On Point
14 3/4 in
Off Point
5 in
Standards
CSA Certified, UL Listed
Type
Manual
Requires Control Panel
No Control Panel Required
Flow Rate @ 10 ft of Head
199 gpm
Shaft Seal Material
Carbon/Ceramic
Motor Housing Material
Cast Iron
Feet of Head - Maximum
75 ft
Current
16.60 A
Horsepower
2 hp
Power Source
Corded Electric
Volute Material
Cast Iron
Hazardous Location Class
Not Rated
Liquid Temperature - Maximum
130 Degrees F
Shaft Seal Type
Single Mechanical
Frequency
60 Hz
Series
Model 295
For Media Type
Sewage Water
Rotation Speed - Maximum
3,450 RPM
Discharge Orientation
Vertical

Description

When it comes to pumping out waste water, the ZOELLER E295 Waste-Mate 2 HP 2" Manual Submersible Sewage Pump is the ideal solution. This pump is CSA certified and UL listed. The submersible sewage pump has a flow rate of 199 gpm at 10 ft. of head pressure. It can handle liquid temperatures up to 130 degrees F and has a discharge size of 2 in FNPT. The overall height of this sewage pump is 21 3/16 in., while its on point is 14 3/4 in. Cast iron makes up the body, base, and body material of this manual submersible sewage pump. When you need a reliable sewer ejector pump that can handle tough conditions, consider investing in the ZOELLER E295 Waste-Mate 2 HP 2" Manual Submersible Sewage Pump.
