Shop All Copper Fittings
Zoro Select

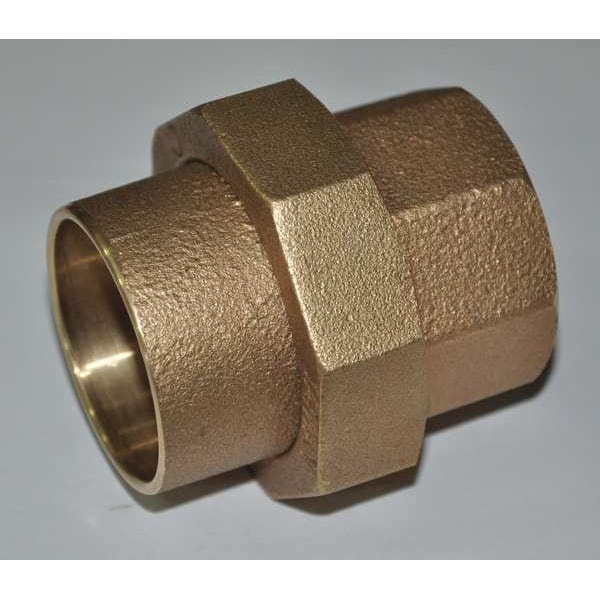

1" NOM C Copper Union

product price: $14.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Cast Copper
  • Pipe Fitting Material Cast Copper
  • Specific Fitting Shape Union
  • Fitting Connection Type C x C
  • Tube Size 1"
See all product information

Product Information

Dimensions

Tube Size 1"
Outside Dia. 1-1/8"
Overall Length 66 3/16 mm
Fitting Side A Tube Outer Diameter 1 1/8 in
Fitting Side B Tube Outer Diameter 1 1/8 in
Socket Depth 91/100 in
Fitting Side A Copper Tube Size 1 in
Fitting Side B Copper Tube Size 1 in

Details

Item Union
Tube Fitting Material Cast Copper
Pipe Fitting Material Cast Copper
Specific Fitting Shape Union
Fitting Connection Type C x C
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Union
Specific Pipe Fitting Shape Union
Max. Pressure 494 psi @ 100 Degrees F
Temp. Range -20 to 400 Degrees F
Standards ANSI B16.18
Pipe Fitting Connection Type C x C
Fitting Side A Connection Type Cup
Fitting Side B Connection Type Cup
Fitting Material Cast Copper
Maximum Operating Pressure 494 psi @ 100 Degrees F
Compatible Tube Material Copper
Application Air, Non-Potable Water
Material Grade C84400
Maximum Operating Temperature 400 Degrees F
Color Bronze
Resistance Properties Abrasion-Resistant
Minimum Operating Temperature -20 Degrees F

Description

Union, Application Air, Non-Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Cast Copper, Fitting Side A Tube Outer Diameter 1 1/8 in, Fitting Side B Tube Outer Diameter 1 1/8 in, Maximum Operating Pressure 494 psi @ 100 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Union, Standards ANSI B16.18, Color Bronze

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
