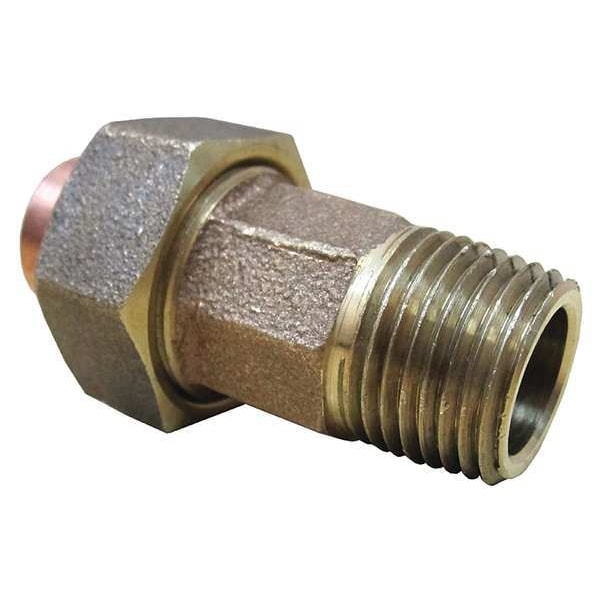

3/4" NOM C x 3/4" MNPT Copper Union

product price: $13.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Cast Copper
  • Pipe Fitting Material Cast Copper
  • Specific Fitting Shape Union
  • Fitting Connection Type C x MNPT
  • Tube Size 3/4"
See all product information

Product Information

Dimensions

Tube Size 3/4"
Pipe Size - Pipe Fitting 3/4"
Outside Dia. 7/8"
Pipe Size (Fittings) 3/4"
Overall Length 75 3/32 mm
Fitting Side B Tube Outer Diameter 3/4 in
Socket Depth 3/4 in
Fitting Side B Pipe Size 3/4 in
Fitting Side A Tube Outer Diameter 7/8 in
Fitting Side A Copper Tube Size 3/4 in

Details

Item Union
Tube Fitting Material Cast Copper
Pipe Fitting Material Cast Copper
Specific Fitting Shape Union
Fitting Connection Type C x MNPT
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Union
Temp. Range -20 to 400 Degrees F
Standards ANSI B16.18
Pipe Fitting Connection Type C x MNPT
Max. Pressure 582 psi @ 100 Degrees F
Specific Pipe Fitting Shape Union
Resistance Properties Abrasion-Resistant
Fitting Material Cast Copper
Fitting Side B Connection Type MNPT
Fitting Side A Connection Type Cup
Maximum Operating Pressure 582 psi @ 100 Degrees F
Material Grade C84400
Maximum Operating Temperature 400 Degrees F
Compatible Tube Material Copper
Minimum Operating Temperature -20 Degrees F
Application Air, Non-Potable Water
Color Bronze

Description

Union, Application Air, Non-Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Cast Copper, Fitting Side B Pipe Size 3/4 in, Fitting Side A Tube Outer Diameter 7/8 in, Fitting Side B Tube Outer Diameter 3/4 in, Maximum Operating Pressure 582 psi @ 100 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Union, Standards ANSI B16.18, Color Bronze

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
