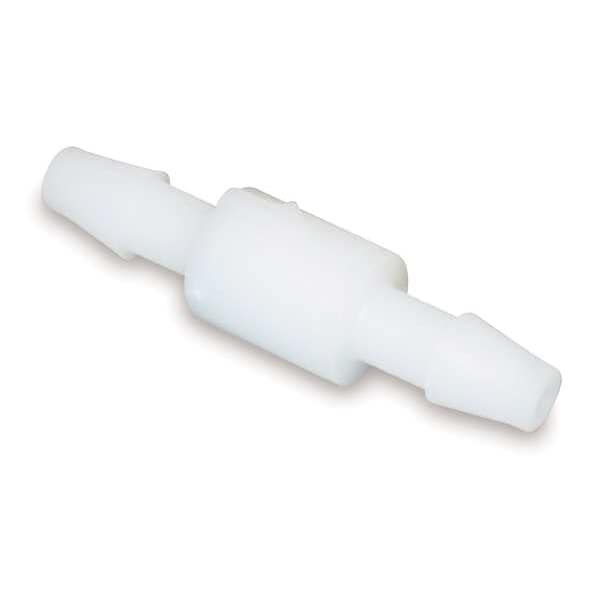

1/4" Barb Polypropylene Ball Cone Spring Check Valve

  • Mfr # PP CHK 695-4B4B-B
  • Zoro # G1938903
product price:
$
8.39
/ea

Key Features

Pipe Size
1/4"
Connection Type
Barb x Barb
Connection
Barb
Body Material
Polypropylene
Cracking Pressure
1 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PP CHK 695-4B4B-B
Zoro #
G1938903
UPC #
00194484301095
Country of Origin
Japan

Dimensions

Pipe Size
1/4"
Pipe or Tube Size - Check Valves
1/4 in
Width
1/2"
Length
2"
Size
1/4"
Overall Height
1/2"
Overall Length
2 in
Pipe or Tube Size
1/4 in
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in
Nominal Valve Size
1/4 in
Height - Cap to Inlet Center
2 15/16 in
Wire Rope Length
2 in

Details

Connection Type
Barb x Barb
Connection
Barb
Body Material
Polypropylene
Cracking Pressure
1 psi
Max. Water Pressure
125 psi
Max. Temp. - Valves
140 Degrees F
Material of Construction
polypropylene
Body Material - Valves
Polypropylene
Cracking Pressure - Check Valves
1.000 psi
Full Flow - Valves
Yes
Seal Material - Check Valves
Buna-N
Application - Valves
General Purpose
Item - Check Valves
Check Valve
Max. Steam Pressure - Valves
Not Rated
Item
Ball Cone Spring Check Valve
Seat Material - Check Valves
Polypropylene
Mounting Position
Vertical or Horizontal
Mechanism and Body Design
Inline Ball Cone
Connection Type - Check Valves
Barb x Barb
Cap to Inlet Center
2 29/32 in
Seat Material
Polypropylene
Seal Material
Buna-N
Max. Water Pressure - Valves
125 psi
Flow Design
Single
Max. Pressure
125 psi
Spring Material - Check Valves
Stainless Steel
Max. Temp.
140 Degrees F
Sub-Category
Polypropylene
Mounting Orientation - Check Valves
Horizontal, Vertical
Min. Temp. - Valves
-20 Degrees F
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Ball Cone Design
Maximum Pressure - Steam
Not Rated
Coefficient of Volume (Cv)
0.2
Connection Type - Side 2
Barb
Check Mechanism Material
Stainless Steel
Vacuum Service Rating
Not Rated
Connection Type - Side 1
Barb
Valve Body Style
Inline
Silent Check
Standard
3-A Standard Compliance
Not Rated
For Media
Air, Fluids
Maximum Pressure - Operating
125 psi
Check Mechanism
Ball
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
140 Degrees F
Valve Series
695

Description

ZORO SELECT Series 695 ball cone spring check valve intended for inline single-flow check-valve applications. It features a polypropylene body with 1/4 in barb x barb connections for use with compatible air and fluid applications within listed pressure and temperature specifications. The ball check mechanism, Buna-N seal, and stainless steel spring and check mechanism are included in the valve assembly for horizontal or vertical mounting positions.

Key Features:

  • Valve type: Ball cone spring check valve with inline body design
  • Connection size: 1/4 in on both sides
  • Connection type: Barb x barb
  • Body material: Polypropylene
  • Check mechanism: Ball
  • Seal material: Buna-N
  • Seat material: Polypropylene
  • Spring/check mechanism material: Stainless steel
  • Cracking pressure: 1 psi
  • Flow coefficient (Cv): 0.2
  • Maximum operating pressure: 125 psi
  • Operating temperature range: -20 degrees F to 140 degrees F
  • Mounting orientation: Horizontal or vertical
  • Overall length: 2 in
  • Full flow: Yes
