  11. 1/4" Barb PVC Ball Valve 3-Way
Shop All Ball Valves
Zoro Select

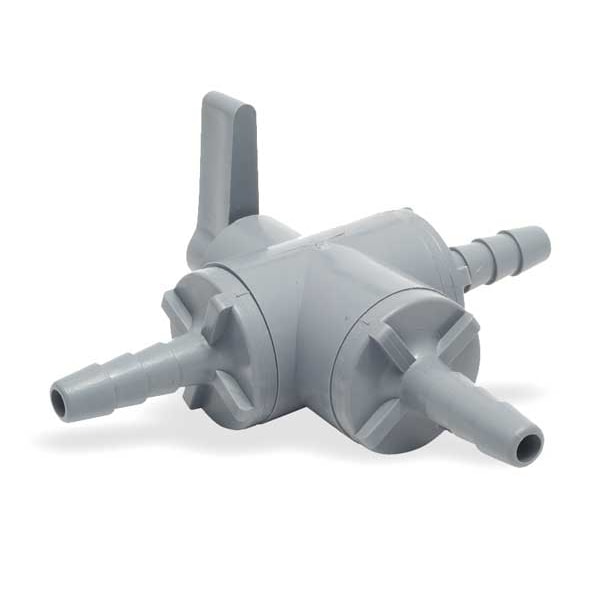

1/4" Barb PVC Ball Valve 3-Way

product price: $26.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material PVC
  • Body Style 3-Way
  • Seat Material Viton
  • Connection Type Barb x Barb x Barb
  • Hose I.D. 1/4"
See all product information

Product Information

Dimensions

Pipe Size 1/4"
Overall Length 3.0"
Outlet Connection Size - Side 1 1/4 in
Nominal Valve Size 1/4 in
Outlet Connection Size - Side 2 1/4 in
Inlet Connection Size 1/4 in

Details

Body Material PVC
Body Style 3-Way
Seat Material Viton
Connection Type Barb x Barb x Barb
Hose I.D. 1/4"
Handle Material PVC
Handle Type Flag
Ball Material PVC
Temp. Range 20 Degrees to 140 Degrees F
Ball Valve Basic Body Material Plastic
Stem Type Self-Lubricating
Standards NSF STD 51
Port Full
Valve Structure 1-Piece
Stem Material PVC
Max. Pressure 125 psi CWP
Ball Valve Product Group Manual
Features Common Bottom Port, Diverter, Selecting or Mixing Valves
Body Seal Material FPM
Item Ball Valve
Seal Material FPM
Connection Hose Barb
Type One Piece, Three Way
Sub-Category Synthetic Ball Valves
Material of Construction PVC
Inlet Connection Entry Bottom
Operating Temperature - Minimum 20 Degrees F
Vacuum Service Rating Not Rated
Color - Valve Handle Gray
3-A Standard Compliance Not Rated
Vented Ball Valve Non-Vented
Outlet Connection Type - Side 1 Barb
Maximum Pressure - Steam Not Rated
For Media Water
NSF Certifications for Food and Drinking Water NSF 51
Operating Temperature - Maximum 140 Degrees F
Flow Pattern L Flow
Outlet Connection Gender - Side 1 Male
Valve Ways 3-Way
Outlet Connection Type - Side 2 Barb
Maximum Pressure - Combustible Gas Not Rated
Valve Construction One-Piece
Outlet Connection Gender - Side 2 Male
Handle - Locking Non-Locking
Maximum Pressure - Operating 125 psi
Coefficient of Volume (Cv) 1.52
Ball Port Style Full Port
Inlet Connection Type Barb
Inlet Connection Gender Male

Description

Manual Three-Way Ball Valve, Body Material PVC, Valve Construction One-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 1/4 in, Inlet Connection Size 1/4 in, Inlet Connection Gender Male, Inlet Connection Type Barb, Inlet Connection Entry Bottom, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 1/4 in, Outlet Connection Gender - Side 1 Male, Handle Material PVC
