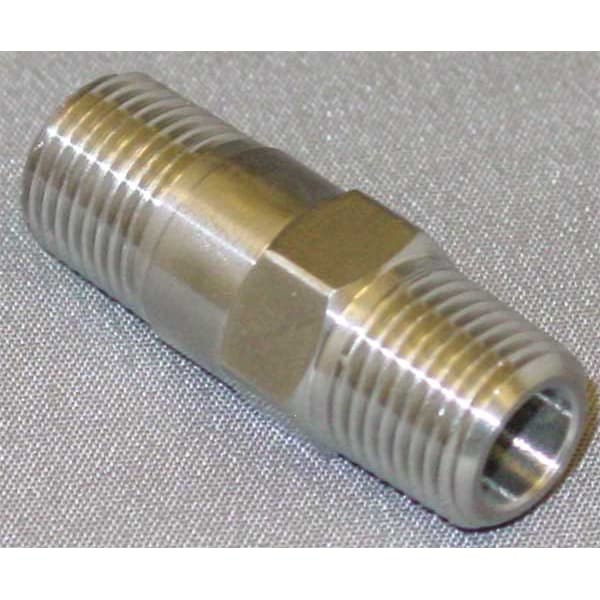

1/8" MNPT Stainless Steel Piston Spring Check Valve
Mfr # CHK SST 210-2M2M-B
Zoro # G1418952
product price:Â
$
29.39
/ea
Key Features
Pipe Size
1/8"
Hex Size
7/16 in
Connection Type
MNPT
Connection
MPT
Body Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CHK SST 210-2M2M-B
- Zoro #
- G1418952
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Pipe Size
- 1/8"
- Hex Size
- 7/16 in
- Width
- 0.44"
- Length
- 1.19"
- Pipe or Tube Size - Check Valves
- 1/8"
- Size
- 1/8"
- Overall Height
- 7/16"
- Overall Length
- 1.19 in
- Pipe or Tube Size
- 1/8 in
- Connection Size - Side 2
- 1/8 in
- Connection Size - Side 1
- 1/8 in
- Nominal Valve Size
- 1/8 in
- Height - Cap to Inlet Center
- 2 15/16 in
- Wire Rope Length
- 1.19 in
Description
ZORO SELECT Series 210 1/8 in. piston spring check valve is an inline, single-flow check valve with MNPT x MNPT connections. It features a stainless steel body and internal components and uses a spring-loaded stainless steel piston configured for one-way flow; cracking pressure: 1 psi. Designed for air and fluids, it is for use in compatible air and fluid piping systems requiring a check valve.
Key Features:
- Inline piston spring check valve for one-way flow control
- 1/8 in. nominal valve size with 1/8 in. male NPT connections on both ends
- Stainless steel body, seat, check mechanism, and spring
- Buna-N seal material
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Compatible media: air, fluids
- Mounting orientation: horizontal or vertical
- Single-flow design
- Full flow: yes
- Cv: 0.2
- Overall length: 1.19 in.
- Standards: UL, UR
