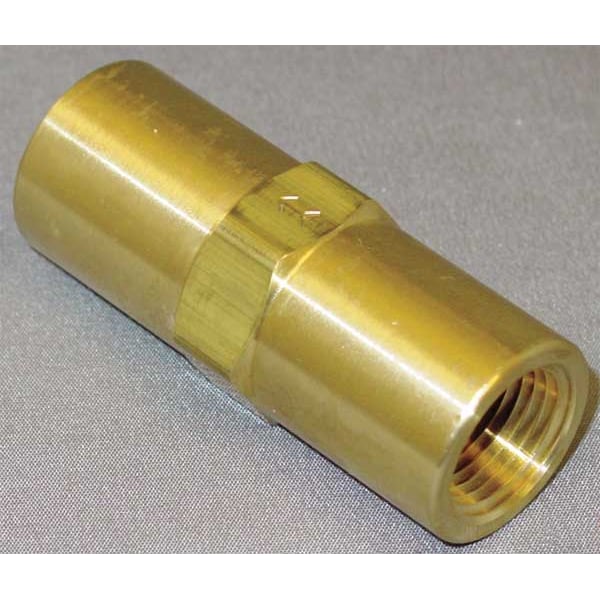

3/8" FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 615-6F6F-B

  • Zoro # G2630266

product price:
$
31.19
/ea

Key Features

Pipe Size
3/8"
Hex Size
7/8 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CHK BRS 615-6F6F-B
Zoro #
G2630266
UPC #
-
Country of Origin
United States
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Max. Steam Pressure - Valves
Not Rated
Sub-Category
Brass
Flow Design
Single
Seat Material - Check Valves
Brass
Max. Water Pressure - Valves
500 psi
Mounting Orientation - Check Valves
Horizontal, Vertical
Spring Material - Check Valves
Stainless Steel
Body Material - Valves
Brass
Min. Temp. - Valves
-20 Degrees F
Cracking Pressure - Check Valves
1.0 psi
Seat Material
Brass
Full Flow - Valves
Yes
Max. Temp.
250 Degrees F
Max. Temp. - Valves
180 Degrees F
Mechanism and Body Design
Inline Piston
Cap to Inlet Center
3 9/16 in
Seal Material - Check Valves
Buna-N
Max. Pressure
500 psi
Mounting Position
Vertical or Horizontal
Application - Valves
General Purpose
Item - Check Valves
Check Valve
Seal Material
Buna-N
Cracking Pressure
1 psi
Item
Piston Spring Check Valve
Material of Construction
Brass
Max. Water Pressure
500 psi
Connection Type - Check Valves
FNPT x FNPT
Spring Material
Stainless Steel
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
3-A Standard Compliance
Not Rated
Connection Gender - Side 2
Female
Operating Temperature - Minimum
-20 Degrees F
Coefficient of Volume (Cv)
2.2
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 1
Female
Silent Check
Standard
Check Mechanism Material
Brass
Maximum Pressure - Operating
500 psi
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Check Mechanism
Piston
Operating Temperature - Maximum
180 Degrees F
Connection Type - Side 2
NPT
For Media
Air, Fluids
Connection Type - Side 1
NPT
Type
Piston Design
Valve Series
615

Description

ZORO SELECT 615 series 3/8 in. FNPT brass piston spring check valve with an inline body and single-flow design. It uses a spring-loaded brass piston intended for one-direction flow and reverse-flow closure in compatible applications for use in backflow-control applications with compatible air and fluid piping systems. This valve is rated for horizontal or vertical mounting and features a full-flow design.

Key Features:

  • Valve type: Piston spring check valve with inline piston mechanism
  • Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, Buna-N seal
  • Connection details: 3/8 in. female NPT x female NPT
  • Cracking pressure: 1 psi
  • Flow capacity: Cv 2.2
  • Pressure rating: 500 psi maximum operating/water pressure
  • Temperature range: -20 degrees F to 180 degrees F
  • Dimensions: 2 1/4 in. length, 7/8 in. overall height and width, 3 9/16 in. cap to inlet center, 7/8 in. hex size
  • Standards: UL, UR
