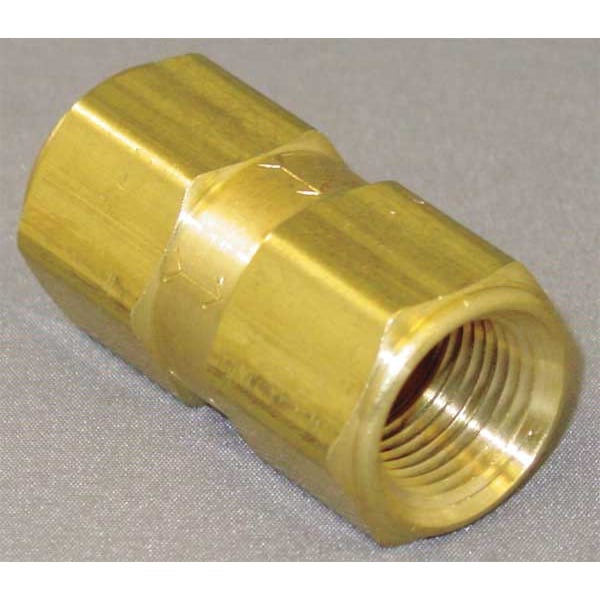

3/8" FNPT Brass Poppet Spring Check Valve

  • Mfr # CHK BRS 650-6F6F-B

  • Zoro # G2511905

product price:
$
25.49
/ea

Key Features

Pipe Size
3/8"
Hex Size
7/8 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 650-6F6F-B
Zoro #
G2511905
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
3/8"
Hex Size
7/8 in
Length
1 3/4 in
Overall Height
7/8 in
Pipe or Tube Size - Check Valves
3/8 in
Width
7/8 in
Size
3/8"
Overall Length
1.75 in
Pipe or Tube Size
3/8 in
Height - Cap to Inlet Center
7 7/16 in
Nominal Valve Size
3/8 in
Connection Size - Side 1
3/8 in
Connection Size - Side 2
3/8 in
Wire Rope Length
1.75 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Cracking Pressure
1 psi
Seal Material
Buna-N
Spring Material - Check Valves
Stainless Steel
Item - Check Valves
Check Valve
Cracking Pressure - Check Valves
1.0 psi
Max. Steam Pressure - Valves
Not Rated
Min. Temp. - Valves
-20 Degrees F
Sub-Category
Brass
Max. Water Pressure - Valves
1200 psi
Max. Temp. - Valves
180 Degrees F
Seal Material - Check Valves
Buna-N
Item
Poppet Spring Check Valve
Seat Material - Check Valves
Brass
Spring Material
Stainless Steel
Material of Construction
Brass
Max. Temp.
250 Degrees F
Mechanism and Body Design
Inline Poppet
Mounting Position
Vertical or Horizontal
Max. Pressure
1200 psi
Connection Type - Check Valves
FNPT x FNPT
Body Material - Valves
Brass
Flow Design
Single
Cap to Inlet Center
7 13/32 in
Seat Material
Brass
Mounting Orientation - Check Valves
Horizontal, Vertical
Application - Valves
General Purpose
Max. Water Pressure
1200 psi
Full Flow - Valves
Yes
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Poppet Design
Operating Temperature - Minimum
-20 Degrees F
Valve Body Style
Inline
Silent Check
Standard
Maximum Pressure - Operating
1,200 psi
Maximum Pressure - Steam
Not Rated
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
180 Degrees F
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Check Mechanism
Poppet
3-A Standard Compliance
Not Rated
Check Mechanism Material
Brass
For Media
Water
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Valve Series
650

Description

ZORO SELECT 650 Series poppet spring check valve with an inline, single-flow design. It has a brass body, brass poppet, brass seat, stainless steel spring, and Buna-N seal. With 3/8 in FNPT x FNPT connections, it is intended for general purpose water service applications requiring one-direction flow control.

Key Features:

  • Valve type: Poppet spring check valve with inline poppet design
  • Flow function: Configured for one-direction water flow with a spring check mechanism that closes when flow stops or reverses
  • Body material: Brass
  • Check mechanism material: Brass
  • Seat material: Brass
  • Seal material: Buna-N
  • Spring material: Stainless steel
  • Connection type: 3/8 in FNPT x FNPT with female threads on both ends
  • Cracking pressure: 1 psi
  • Flow design: Single; full flow
  • Maximum water pressure: 1200 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Mounting orientation: Horizontal or vertical
  • Overall length: 1.75 in
  • Standards: UL, UR
