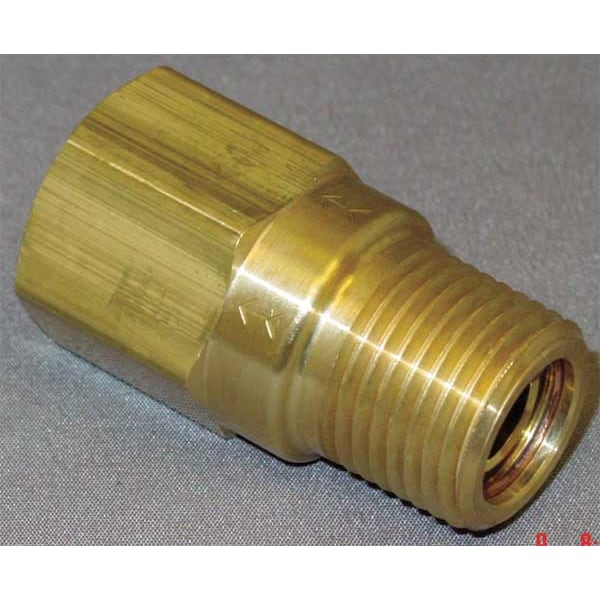

1/8" FNPT x MNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 210-2F2M-B

  • Zoro # G2481166

product price:
$
20.15
/ea

Key Features

Pipe Size
1/8"
Hex Size
9/16 in
Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CHK BRS 210-2F2M-B
Zoro #
G2481166
UPC #
-
Country of Origin
United States
Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Brass
Max. Water Pressure - Valves
500 psi
Mounting Position
Vertical or Horizontal
Seat Material - Check Valves
Brass
Seal Material - Check Valves
Buna-N
Max. Steam Pressure - Valves
Not Rated
Cap to Inlet Center
8 15/16 in
Max. Temp.
180 Degrees F
Cracking Pressure - Check Valves
1.0 psi
Seat Material
Brass
Seal Material
Buna-N
Max. Pressure
500 psi
Max. Temp. - Valves
180 Degrees F
Sub-Category
Brass
Item - Check Valves
Check Valve
Cracking Pressure
1 psi
Body Material - Valves
Brass
Full Flow - Valves
Yes
Application - Valves
General Purpose
Spring Material
Stainless Steel
Spring Material - Check Valves
Stainless Steel
Material of Construction
Brass
Max. Water Pressure
500 psi
Item
Piston Spring Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Connection Type - Check Valves
MNPT x FNPT
Flow Design
Single
Mechanism and Body Design
Inline Piston
Min. Temp. - Valves
-20 Degrees F
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
500 psi
3-A Standard Compliance
Not Rated
Connection Gender - Side 2
Male
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Coefficient of Volume (Cv)
0.2
Operating Temperature - Minimum
-20 Degrees F
Check Mechanism Material
Brass
Check Mechanism
Piston
Connection Gender - Side 1
Female
Silent Check
Standard
For Media
Air, Fluids
Operating Temperature - Maximum
180 Degrees F
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Valve Series
210

Description

ZORO SELECT Series 210-2F2M-B is an inline brass piston spring check valve for air and compatible fluid applications within the stated ratings. This one-way valve uses a spring-loaded piston check mechanism for one-direction flow applications. It features 1/8 in. NPT threaded connections with one female end and one male end, a 1 psi cracking pressure, and a full-flow design. The valve can be mounted horizontally or vertically and is rated for operating temperatures from -20 degrees F to 180 degrees F.

Key Features:

  • Valve type: Piston spring check valve with inline piston mechanism for one-direction flow applications
  • Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
  • Connections: 1/8 in. FNPT x MNPT with NPT threads
  • Pressure rating: 500 psi maximum operating pressure and maximum water pressure
  • Cracking pressure: 1 psi opening pressure
  • Mounting orientation: Horizontal or vertical
  • Size and dimensions: 1/8 in. nominal valve size; 1 1/16 in. length; 9/16 in. overall height and width; 9/16 in. hex size
  • Standards: UL, UR
