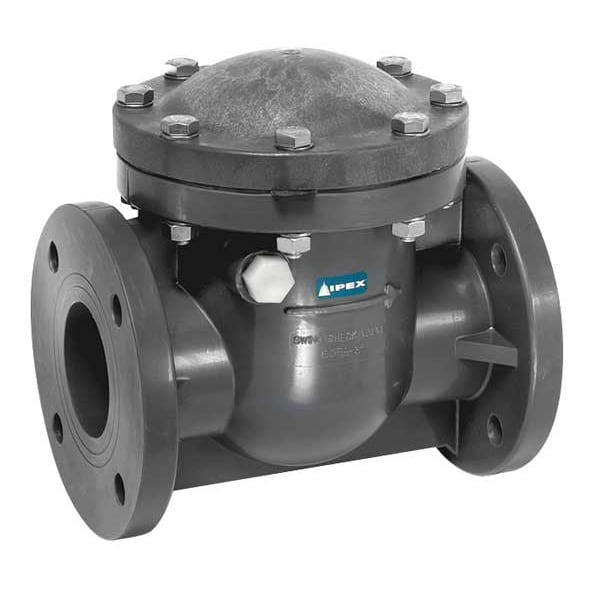

8" Flanged PVC Swing Check Valve
Mfr # SCOV114
Zoro # G8121391
product price: $2,895.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
8"
Hex Size
3/4"
Connection Type
Flanged
Connection
Flanged
Body Material
PVC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SCOV114
Zoro #
G8121391
UPC #
622454383425
Country of Origin
Taiwan, Province of China
Dimensions
Pipe Size
8"
Hex Size
3/4"
Size
8"
Length
19 1/2 in
Pipe or Tube Size - Check Valves
8 in
Width
16 23/32 in
Overall Height
18 5/16 in
Overall Length
16.69 in
Pipe or Tube Size
8 in
Connection Size - Side 1
8 in
Height - Cap to Inlet Center
12 1/16 in
Nominal Valve Size
8 in
Connection Size - Side 2
8 in
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves PVC, Pipe or Tube Size 8 in, Connection Type Flange x Flange, Cracking Pressure 12.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 70 psi @ 73 Degrees F, Max. Steam Pressure - Valves Not Rated, Flow - Valves 6,000 gpm, Full Flow - Valves Yes
Restrictions
