  5. Altitude Pressure Gauge, 0 to 230 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location
Zoro Select Altitude Pressure Gauge, 0 to 230 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 18C811 - main

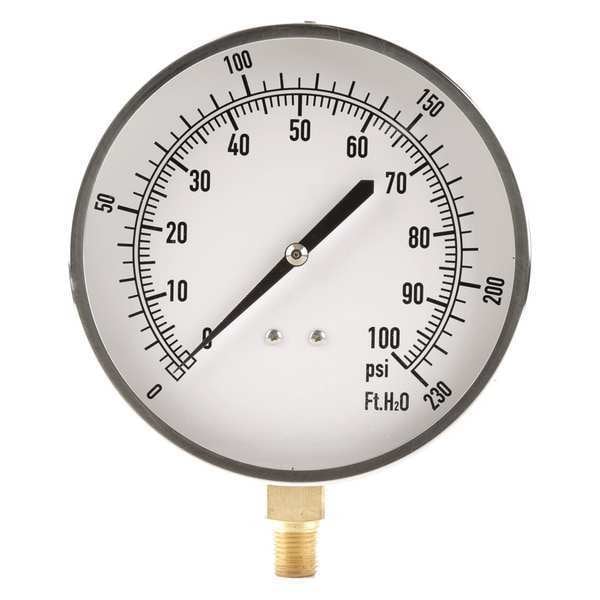

Altitude Pressure Gauge, 0 to 230 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 18C811

  • Zoro # G4739725

product price:  $26.79
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
18C811
Zoro #
G4739725
UPC #
190735393949
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in

Details

Item
Altitude Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Non-Corrosive, Non-Explosive Gas
Gauge Case Material
Stainless Steel
Series
Y120SS
Lens Material
Acrylic
Primary Pressure Range
0 to 230
Primary Scale Units
ft wc
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 230
Smallest Graduation
1 psi
Case Color
Silver
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Gauge Application
Altitude
Case Material
Stainless Steel
Socket Material
Copper
Wetted Materials
Copper
Connection Type
MNPT
Adjustable Pointer
No
Freeze Resistant Movement
No
Reads Head Pressure
No
Removable Bezel
No
Dial Color
White
Secondary Pressure Range
0 to 100
Pressure Gauge Type
Altitude Gauge
Sensor Material
Copper
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Accuracy Scale
Full Scale
Scale Type
Dual
Process Connection Gender
Male
Process Temperature Range
-40 Degrees to 140 Degrees F
Pressure Range Type
Pressure
Secondary Scale Units
psi
Includes Mounting Hardware
No
Maximum Pressure
100 psi
Operating Temperature Range
-40 Degrees to 140 Degrees F

Description

Altitude Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Copper, Socket Material Copper, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Altitude Gauge, Process Temperature Range -40 Degrees to 140 Degrees F

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
