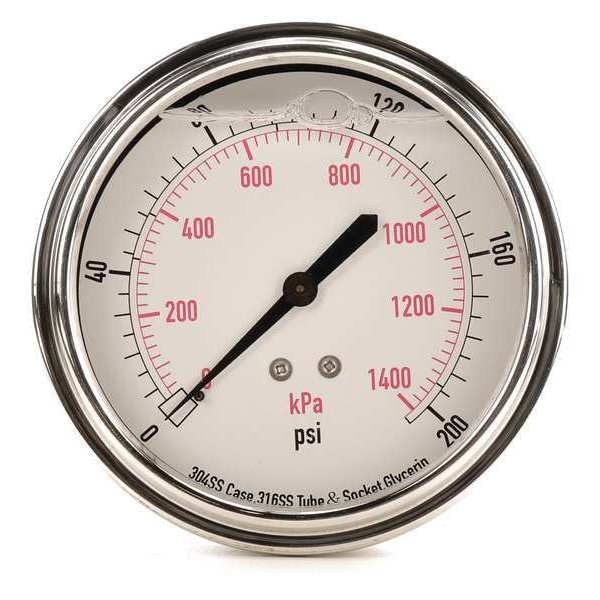

Zoro Select Commercial Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location 4CFV4 - main

Commercial Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFV4

  • Zoro # G0045875

product price:  $336.47
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFV4
Zoro #
G0045875
UPC #
190735502662
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
304 Stainless Steel
Lens Material
Acrylic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Application
Corrosion-Resistant Case
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 1400
Case Color
Silver
For Use With
Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors
Smallest Graduation
5 psi
Gauge Filled With
Glycerin
Gauge Primary Range Smallest Graduation
5
Socket Material
316 Stainless Steel
Case Material
304 Stainless Steel
Wetted Materials
Stainless Steel
Connection Type
MNPT
Pressure Range Type
Pressure
Vibration Resistance
Liquid-Filled
Secondary Scale Units
kPa
Gauge Case Liquid
Glycerin
Accuracy Scale
Mid-Scale
Primary Scale Minor Graduations
1, 2
Cleaned for Oxygen Service
No
Non-Sparking
No
Bezel Material
Crimped Stainless Steel
Removable Bezel
No
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Sensor Material
316 Stainless Steel
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Field Fillable
No
Includes Mounting Hardware
No
Includes Vent Plug
No
Dial Color
White
Scale Type
Dual
Process Connection Gender
Male
Dry Dampening Feature
None
Pressure Gauge Type
Commercial Pressure Gauge
Secondary Pressure Range
0 to 1,400 kPa
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 140 Degrees F
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
200 psi
Operating Temperature - Maximum
140 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,400 kPa

Description

Commercial Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
