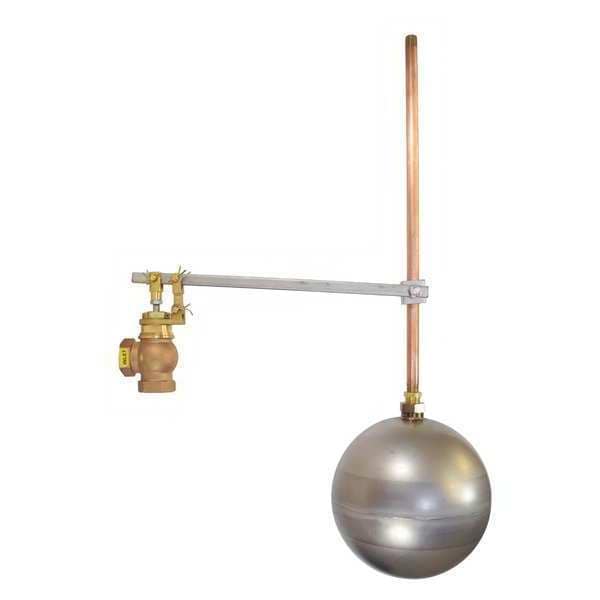

Float Valve, Bronze, FNPT Connection, 3/4"

  • Mfr # AHL75-GR

  • Zoro # G0955479

product price:
$
740.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3/4"
Float Size
7"
Connection Type
FNPT
Body Material
Bronze
Float Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AHL75-GR
Zoro #
G0955479
UPC #
-
Country of Origin
United States
Item
Float Valve
Connection Type
FNPT
Body Material
Bronze
Float Material
Stainless Steel
Max. Pressure
150 psi
Max. Temp.
450 Degrees F
Features
Angle Body Design, Heavy-Duty, Threaded Outlet
Rod Thread
1/4 in NPT
Rod Material
Brass
Valve Flow - Flow (1)
50 gpm
Valve Flow - Pressure (1)
60 psi
Valve Flow - Pressure (2)
20 psi
Valve Material
Bronze
Valve Flow - Flow (2)
13 gpm
Mounting
Horizontal Piping
Flow Rate
50 gpm @ 60 psi
Includes Float and Rod
Float and Rod Included
Connection Gender - Side 2
Female
Operating Temperature - Minimum
33 Degrees F
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Seat Style
Single Seated
For Media
Water
Seal Material
PTFE
Maximum Pressure - Operating
100 psi
Arm Adjustability
Adjustable
Float Shape
Cylindrical
Valve Body Style
Angle
Operating Temperature - Maximum
100 Degrees F
Connection Gender - Side 1
Female
Manufacturer Warranty
1 yr

Description

Float Valve Assembly, Mounting Horizontal Piping, Size 3/4 in, Connection Type FNPT, Rod Thread 1/4 In. NPT, Rod Length 16 in, Rod Material Brass, Body Material Bronze, Valve Flow - Pressure (1) 60 psi, Valve Flow - Flow (1) 50 gpm, Valve Flow - Pressure (2) 20 psi, Valve Flow - Flow (2) 13 gpm, Max. Pressure 150 psi, Max. Temp. 450 Degrees F, Features Angle Body Design, Heavy-Duty, Threaded Outlet, Valve Material Bronze, Float Material Stainless Steel, Float Size 7 in
