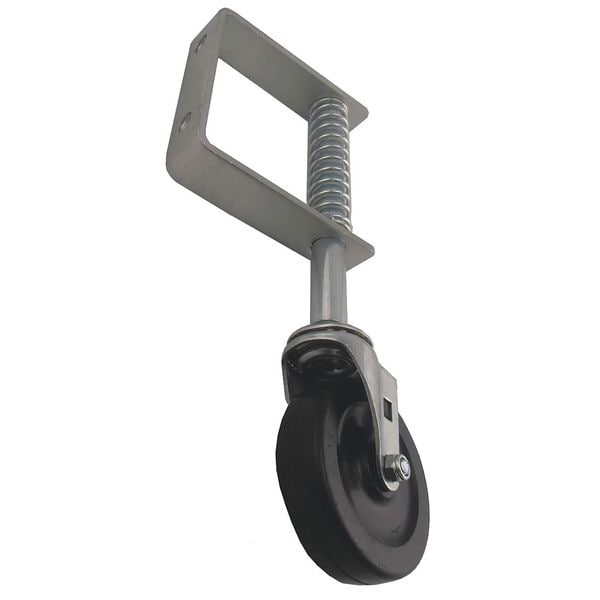

Gate Caster, Rubber, 3 in., 100 lb.

  • Zoro #: G4809104
  • Mfr #: 32J778
$35.74
  • Mounting Bolt Dia.: 5/16 in
  • Load Rating: 100 lb
  • Max. Compression Force: 28 lb.
See full product details
Orders over $75 ship free.

Zoro Select #32J778 Specifications

  • Zoro #: G4809104
  • Mfr #: 32J778
Mounting Bolt Dia.: 5/16 in Load Rating: 100 lb
Max. Compression Force: 28 lb. Wheel Width: 7/8 in
Wheel Color: Black Item: Side-Mount Caster
Caster Raceway: Double Ball Wheel Dia.: 3 in
Caster Core Material: Rubber Stem Dia.: No Stem
Features: Weight Activated Side Mount Hole Pattern: B
Core Color: Black Caster Sub-Type: Swivel
Inside Bolt Hole Spacing: 2-1/4 in Plate Thickness: 3/16"
Stem Length: No Stem Non-Marking: No
Overall Height: 9 11/16 in Plate Size: 1" x 4"
Caster Wheel Bearings: Plain Caster Load Rating Range: Light-Duty
Caster Wheel/Tread Material: Rubber Caster Temp. Range: -40 Degrees to 180 Degrees F
Frame Finish: Zinc Plated Outside Bolt Hole Spacing: 2-1/4 in x 2-1/4 in
Frame Material: Steel Caster Temp. Range Available: Yes
Load Rating Range: 0 to 299 lb Mounting Plate Bolt Hole Pattern: I
Wheel Core Material: Rubber Swivel Raceway Type: Double Ball
Operating Temperature Range: -40 Degrees to 180 Degrees F Wheel/Tread Material: Rubber
Wheel Bearing Type: Plain Caster Frame Material: Steel
Mounting Plate Size: 4 in x 1 in Maximum Compression: 1 23/32 in
Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Side-Mount Caster, 100 lb Load Rating, 0 to 299 lb Load Rating Range, 3 in Wheel Dia., 7/8 in Wheel Width, 9 11/16 in Overall Height, Wheel Bearing Type Plain, I Mounting Plate Bolt Hole Pattern, Mounting Plate Size 4 in x 1 in, 2-1/4 in Inside Bolt Hole Spacing, 2-1/4 in x 2-1/4 in Outside Bolt Hole Spacing, No Non-Marking, 1 23/32 in Maximum Compression
