CAD Drawings
Download CAD Files

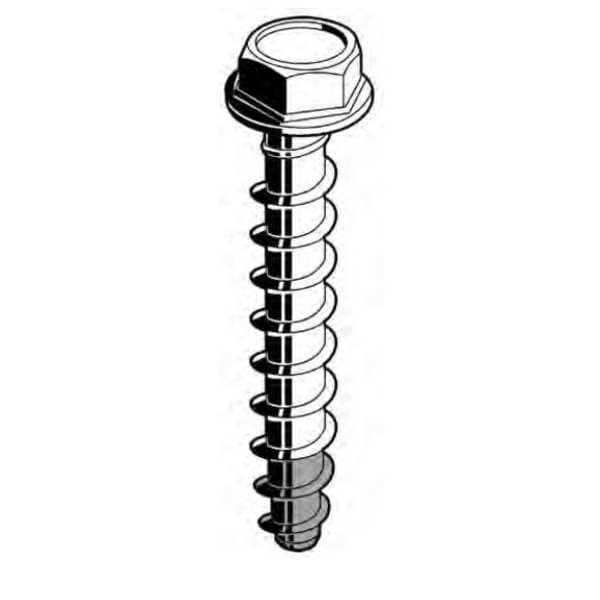

Masonry Screw, 3/8" Dia., Hex, 1-3/4" L, Steel Zinc Plated, 50 PK
Mfr # U70520.037.0175
Zoro # G2056923
CAD Available
product price:Â $46.15
/pk 50, $0.92/eaKey Features
CAD Drawing
Compatible Material
Concrete; Masonry
Material
Steel
Finish
Zinc Plated
Head Type
Hex
Drive Type
External Hex
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U70520.037.0175
Zoro #
G2056923
UPC #
707392642107
Country of Origin
Multiple
Dimensions
Anchor Diameter
3/8"
Overall Length
1-3/4"
Drill Bit Size
3/8"
Minimum Installation Depth
2 in
Max. Work Thickness
1/4 in
Thread Length
1 3/4 in
Maximum Material Thickness
1/4 in
Body Length
1 3/4 in
Description
Screw Anchor, Anchor Diameter 3/8 in, Overall Length 1 3/4 in, Head Type Hex, Drive Type External Hex, Material Steel, Material Grade/Class Case Hardened, Removable Removable, Compatible Material Concrete, Drill Bit Size 3/8 in, Screw Anchor Type Concrete Screw Anchor, System of Measurement Inch, Maximum Material Thickness 1/4 in, Maximum Ultimate Shear Strength 8,240 lb, Maximum Ultimate Tension Strength 4,248 lb, Minimum Installation Depth 2 in, Body Length 1 3/4 in, Package Quantity 50
Documents & Resources
