  13. Miniature Snap Action Switch, Hinge, Lever, Long Actuator, SPDT, 10 A at 240 V AC Contact Rating

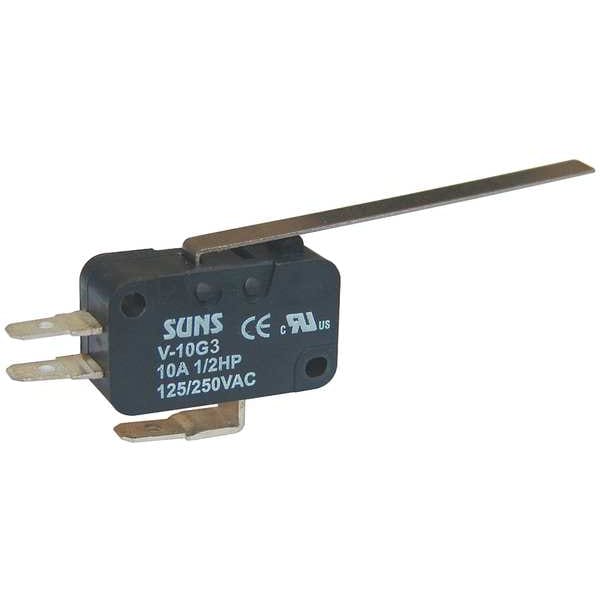

Zoro Select Miniature Snap Action Switch, Hinge, Lever, Long Actuator, SPDT, 10 A at 240 V AC Contact Rating 5JDZ9 - main

Miniature Snap Action Switch, Hinge, Lever, Long Actuator, SPDT, 10 A at 240 V AC Contact Rating

  • Mfr # 5JDZ9

  • Zoro # G1749745

product price: $4.35
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever, Long
AC Contact Rating - Snap Action Switch
10 A @ 240 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.01 in
Height - Snap Action Switch
0.62 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JDZ9
Zoro #
G1749745
UPC #
190735527443
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
2.01 in
Height - Snap Action Switch
0.62 in
Width - Snap Action Switch
1.09 in
Depth - Snap Action Switch
0.41 in
Height
0.625"
Depth
0.406"
Length
1.09"
Actuator Length
2.01"
Mounting Dimension - Snap Action Switch
0.87 in Centers
Mounting Dimension
0.87" Centers
Body Depth
0.41 in
Lever Actuator Length
2.01 in
Overall Height
0.62 in
Overall Width
1.09 in
Overall Depth
0.41 in
Body Height
0.62 in
Body Width
1.09 in

Details

Item
Miniature Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever, Long
AC Contact Rating - Snap Action Switch
10 A @ 240 V
Contact Form- Switches
SPDT
Operating Force
0.72 oz
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Standards
CE, CSA, UL Listed
Max. Pretravel
0.355 in
Current Rating
10A
Series
V
Operating Temp. Range
-13 Degrees to 185 Degrees F
Housing Material
Thermoplastic Case and Cover
Differential Travel
0.079 in
Terminal Type
3/16" Quick Connect
Release Force
0.24 ozf
Type of Actuator
Long Hinge Lever
Voltage Rating
125/250VAC
Contact Form
SPDT
Over Travel
0.118 in
Watertight - Snap Action Switch
No
AC Contact Rating
10 A @ 240 V
Electrical Connection
Quick Connect
Operating Temperature - Minimum
-13 Degrees F
Center Mounting Hole Distance
0.87 in
Operating Temperature - Maximum
185 Degrees F
Overtravel
0.118 in
Operating Force - Maximum
0.72 ozf
Body Material
Thermoplastic
Pretravel
0.355 in
Differential Travel - Maximum
0.079 in
Actuator Style
Hinge Lever

Description

Miniature Snap Action Switch, Hinge, Lever, Long, AC Contact Rating - Snap Action Switch 10 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.01 in, Height - Snap Action Switch 0.62 in, Width - Snap Action Switch 1.09 in, Depth - Snap Action Switch 0.41 in, Electrical Connection - Snap Action Switch 3/16 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers, Series V
