  11. NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller
Zoro Select NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller P21S-PH060R-14-CB - main

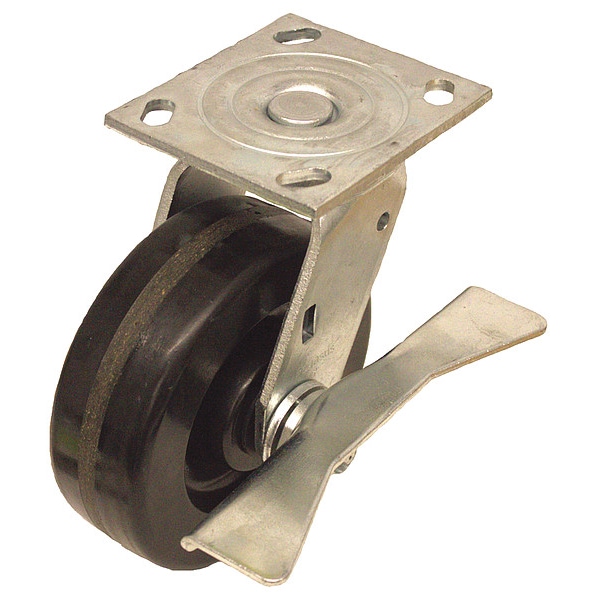

NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller

  • Mfr # P21S-PH060R-14-CB

  • Zoro # G7278089

product price: $54.45
/ea

Key Features

Caster Brake Included
Yes
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PH060R-14-CB
Zoro #
G7278089
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5 in
Overall Height
7-1/2in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Hub Length
2 3/16 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in

Details

Caster Brake Included
Yes
Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102E
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-PH-060x020/050R
Thread Guards
No
Features
Low Rolling Resistance
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Wheel Color
Black
Extended Lead
No
Standards
RoHS, ICWM, NSF
Caster Temp. Range Available
Yes
Includes
Pinch Type Brake
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel Core Material
Phenolic
Load Rating Range
Medium-Duty
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Includes Mounting Fasteners
No
Swivel Lead
1 13/16 in
Load Capacity
1200 lb
Operating Temperature Range
-40 Degrees To 250 Degrees F
NSF Listed
No
Tread Color
Black
Series
P21 Series
ESD Conductive
No
Wheel Type
Flat-Free
For Surface Type
Concrete
Wheel Core Type
Solid
With Toe Plate
No
Frame Construction
Stamped
Wheel Bearing Material
Steel
Brake Location
Right Side
Tread
Standard
Includes Spanner Bushing
Yes
Frame Color
Silver
Swivel Bearing Seal Type
Open
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL21-14 (Directional Lock)
Compatible With
P-PH-060X020/050R
Load Capacity - Maximum
1,200 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
