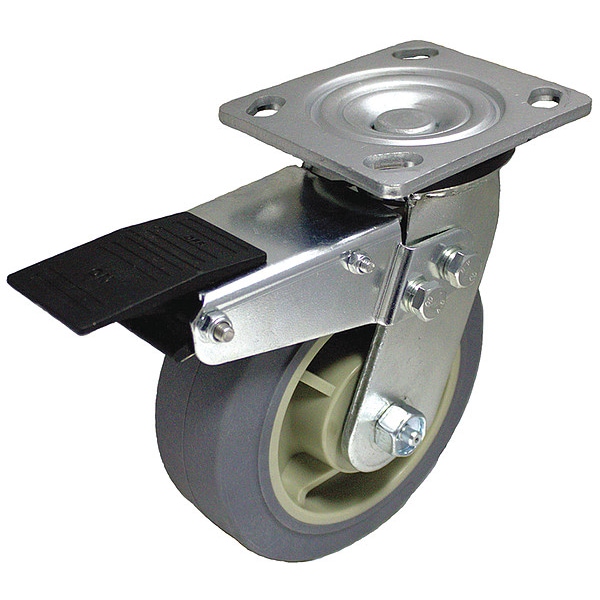

NSF-Listed Plate Caster, 300 lb. Ld Rating, Roller

  • Mfr # P21S-PRP040R-14-TB

  • Zoro # G7279260

product price:
$
46.59
/ea

Key Features

Overall Height
5-5/8"
Mounting Height
5 5/8 in
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Lock Type
Total Lock
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP040R-14-TB
Zoro #
G7279260
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8"
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
4 3/8 in
Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Overall Wheel Width
2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 1/2 in
Mounting Plate Thickness
7/32 in
For Axle Dia.
1/2 in

Details

Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Polyolefin
Load Rating Range
Light-Medium Duty
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Item
Plate Caster
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Series
P21 Series
Number of Wheels
1
Caster Mounting Type
Plate
Standards
ANSI ICWM, NSF Listed
Caster Sub-Type
Swivel
Load Capacity
300 lb
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
System of Measurement
Inch
Wheel Color
Gray
Caster Brake Type
Total Lock
Core Color
Beige
Caster Frame Material
Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes
Total-Lock
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Gray
Load Rating
300 lb
ESD Conductive
No
Features
Floor Protective, Noise Reduction
Replacement Wheel
Mfr. No. P-RP-040X020/050R
Caster Brake Included
Yes
Thread Guards
No
Tread
Standard
Non-Marking
Yes
Load Capacity - Maximum
300 lb
Wheel Hardness Rating
65 Shore A
Compatible With
P-RP-040X020/050R
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Caster Features
Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Brake Location
Rear
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
