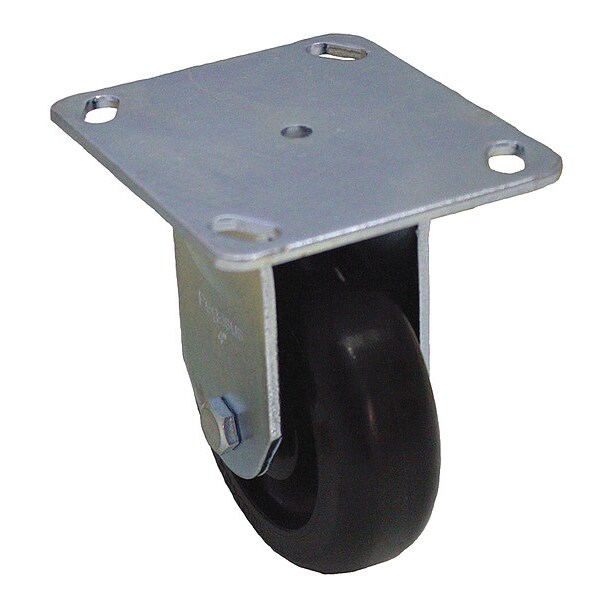

Zoro Select NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid P12R-PB060B-P3 - main

NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid

  • Mfr # P12R-PB060B-P3

  • Zoro # G1204093

product price:  $19.29
/ea

Key Features

Standards
ANSI ICWM, NSF Listed
Caster Frame Material
Steel
Wheel Color
Black
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Caster Temp. Range Available
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12R-PB060B-P3
Zoro #
G1204093
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Swivel Radius
None- Rigid Caster
Wheel Width
1 1/4 in
Overall Height
7-1/4in
Mounting Bolt Dia.
5/16 in
Mounting Height
7 1/4 in
Mounting Plate Size
3-3/4in x 4-3/8in
Bolt Hole Spacing - Length
2.625 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Length
3 in
For Axle Dia.
3/8 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 3/8 in
Mounting Plate Width
3 3/4 in

Details

Standards
ANSI ICWM, NSF Listed
Caster Frame Material
Steel
Wheel Color
Black
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Extended Lead
No
Caster Brake Included
No
Load Rating
325 lb
Item
Rigid Caster
Number of Wheels
1
Core Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Thread Guards
No
Caster Sub-Type
Rigid
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-PB-060x013/038B
Caster Brake Type
No Brake
Tread Shape
Standard
Includes Thread Guards
No
Wheel Bearing Type
Ball
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Operating Temperature Range
-20 Degrees To 180 Degrees F
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
System of Measurement
Inch
Series
P12 Series
Load Capacity
300 lb
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Color
Black
Caster Mounting Type
Plate
Load Capacity - Maximum
325 lb
Wheel Hardness Rating
65 Shore D
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
