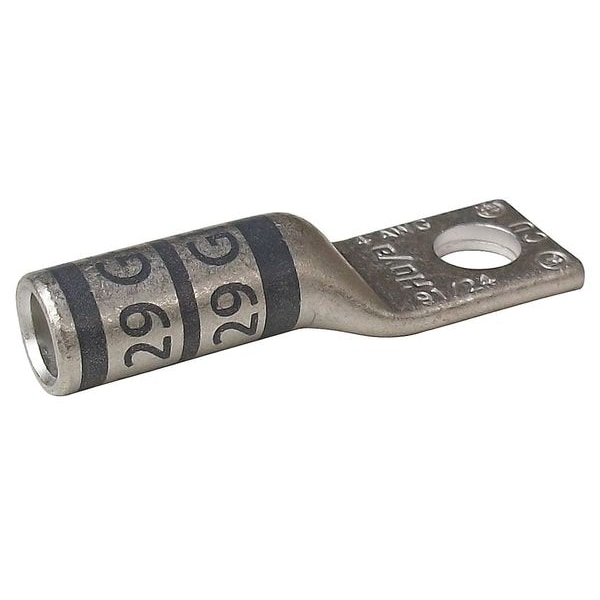

One-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Long Barrel, Copper, Gray

  • Mfr # 24C320

  • Zoro # G4693211

product price:  $2.29
/ea

Key Features

For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24C320
Zoro #
G4693211
UPC #
190735431665
Country of Origin
China

Dimensions

For Wire Size
4 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.52 in
Cable Size
4 AWG
Length
1.7"
Width
0.52"
Barrel Length
Long
Length (Straight Wireway)
1.7 in
Tongue Thickness
0.1 in
Overall Width
0.52 in
Overall Length
1.7 in
Strip Length
7/8 in
For Stranded Copper Wire Size - Maximum
4 AWG
Tongue Length
0.65 in
For Stranded Copper Wire Size - Minimum
4 AWG
Barrel Outside Diameter
0.37 in
Hole Size
0.27 in
Barrel Inside Diameter
0.27 in
Wire Rope Length
1.7 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
No
Die Code
29
Color Code
Gray
Standards
CSA Certified, UL Listed
Peep Hole
No
Hole Center to End
0.25 in
Tongue Style
Standard
Connector Type
Straight Barrel
Seam Style
Seamless
Maximum Voltage
35 kV
RoHS Compliant
Yes
Barrel Style
Chamfered
Special Features
Corrosion Resistant, High-Conductivity Construction
Maximum Operating Temperature
300 Degrees F
Termination Style
Crimp
Contact Finish
Tin
For Wire Type
Stranded
Current
125 A
Number of Holes
1

Description

One-Hole Lug Compression Connector, Barrel Size Long, Color Code Gray, Die Code 29, Tongue Angle Straight, Tongue Width 0.52 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
