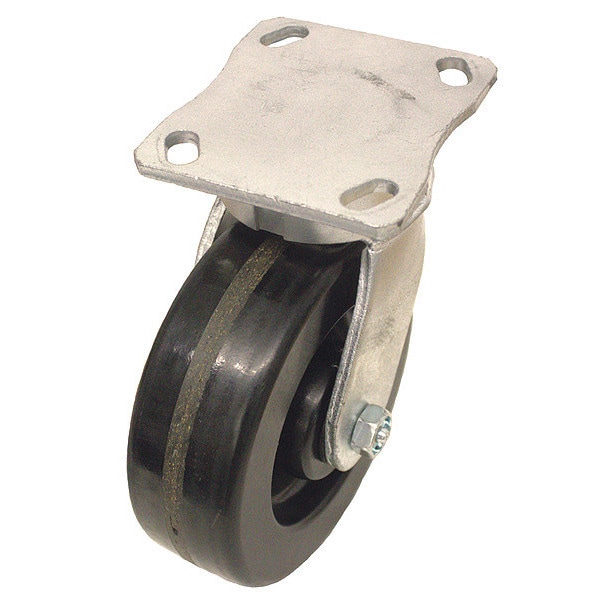

Zoro Select Plate Caster, 800 lb. Ld Rating, Roller P25S-PH040R-14 - main

Plate Caster, 800 lb. Ld Rating, Roller

  • Mfr # P25S-PH040R-14

  • Zoro # G7279671

product price:  $35.45
/ea

Key Features

Caster Sub-Type
Swivel
Load Rating
800 lb
Inside Bolt Hole Spacing
3 in x 3 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-PH040R-14
Zoro #
G7279671
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8in
Wheel Width
2 in
Swivel Radius
3-3/16 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
5 5/8 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in
Mounting Plate Thickness
0.236 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in

Details

Caster Sub-Type
Swivel
Load Rating
800 lb
Inside Bolt Hole Spacing
3 in x 3 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Thread Guards
No
Wheel Color
Black
Caster Plate Hole Pattern
B
Number of Wheels
1
Core Color
Black
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Features
Floor Protective
Item
Kingpinless Swivel Caster
Caster Brake Included
No
Non-Marking
Yes
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-PH-040x020/050R
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel Core Material
Phenolic
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpinless
Load Rating Range
Medium Duty
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
P25 Series
Load Capacity
800 lb
Caster Mounting Type
Plate
Tread Color
Black
Tread
Standard
Accessories
Optional: P-DL25-14 (Directional Lock)
Load Capacity - Maximum
800 lb
Compatible With
P-PH-040X020/050R
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
Rockwell 102E
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
