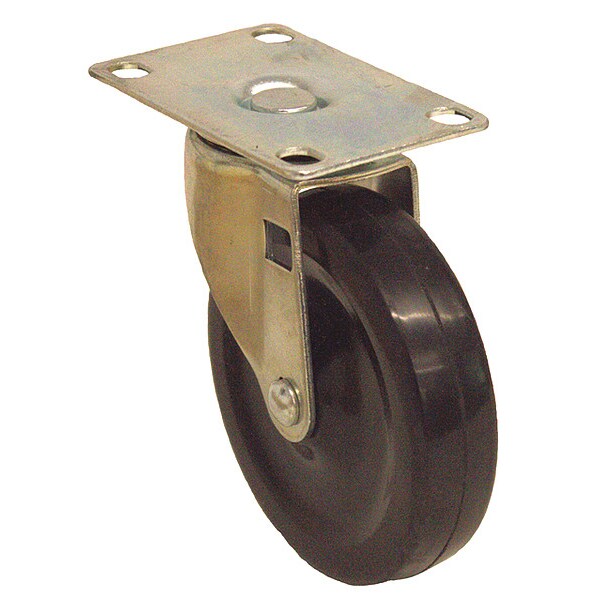

Zoro Select Plate Caster, 130 lb. Ld Rating, Plain P5S-R040G-12 - main

Plate Caster, 130 lb. Ld Rating, Plain

  • Mfr # P5S-R040G-12

  • Zoro # G9660806

product price: $7.19
/ea
Sold in multiples of 2 for $14.38

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-R040G-12
Zoro #
G9660806
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
15/16 in
Mounting Height
4 13/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.079 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-7/8in
Swivel Radius
3-5/16 in
For Axle Dia.
5/16 in
Mounting Plate Length
2 1/2 in
Bolt Hole Spacing - Width
2.875 in
Overall Wheel Width
15/16 in
Bolt Hole Spacing - Length
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
No Brake
Load Rating
130 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 2-7/8 in
Inside Bolt Hole Spacing
1-3/4 in x 2-7/8 in
Caster Plate Hole Pattern
D
Features
Noise Reduction
Caster Temp. Range Available
Yes
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Thread Guards
No
Wheel Color
Black
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Extended Lead
No
Wheel Core Material
Rubber
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Load Rating Range
Light Duty
Wheel/Tread Hardness Rating
Soft
ESD Conductive
No
Tread Color
Black
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
130 lb
Series
P5 Series
Load Capacity - Maximum
130 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature Range
-20 Degrees To 125 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 130 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 15/16 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
