  6. Plate Caster, 1650 lb. Ld Rating, Ball

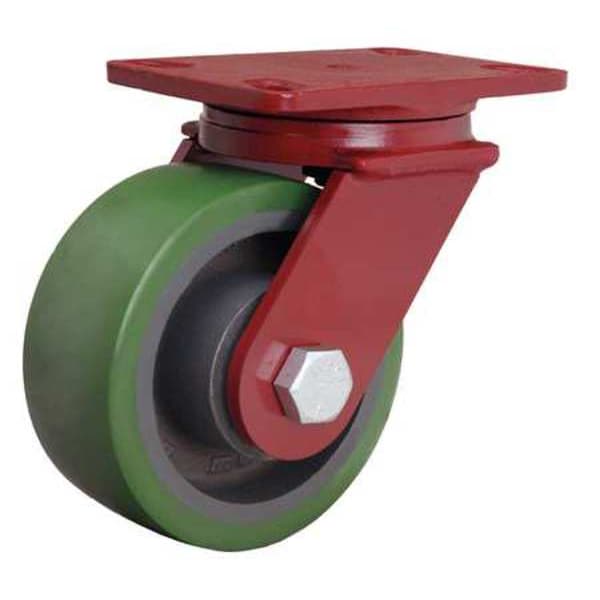

Zoro Select Plate Caster, 1650 lb. Ld Rating, Ball LO-GTH 150K - main

Plate Caster, 1650 lb. Ld Rating, Ball

  • Mfr # LO-GTH 150K

  • Zoro # G7278612

product price:  $185.99
/ea
Free Shipping & Returns

Key Features

Frame Finish
Zinc Plated
Mounting Bolt Dia.
3/8 in
Extended Lead
No
Wheel Dia.
6 in
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LO-GTH 150K
Zoro #
G7278612
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Wheel Width
2 in
Overall Height
7-7/8in
Swivel Radius
5 1/4 in
Mounting Plate Size
110 mm x 140 mm
Mounting Height
7 7/8 in
For Axle Dia.
12 mm
Overall Wheel Width
2 in
Mounting Plate Thickness
8 mm
Inside Slot Spacing - Width
2.969 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in
Inside Slot Spacing - Length
4.125 in

Details

Frame Finish
Zinc Plated
Extended Lead
No
Core Color
Gray
Wheel Color
Yellow
Caster Brake Included
No
Outside Bolt Hole Spacing
80 mm x 105 mm
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Standards
DIN EN 12532, ANSI ICWM
Number of Wheels
1
Replacement Wheel
Mfr. No. GTH 150/20K
Non-Marking
Yes
Caster Plate Hole Pattern
C
Load Rating
1650 lb
Inside Bolt Hole Spacing
75 mm x 105 mm
Thread Guards
No
Caster Frame Material
Steel
Item
Swivel Caster
Features
Floor Protective
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Precision Ball
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy Duty
Wheel/Tread Material
Extrathane Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Metric
Tread
Standard
ESD Conductive
No
Series
LO Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
750 kg
Tread Color
Light Brown
Caster Mounting Type
Plate
Load Capacity - Maximum
1,765 lb
Wheel Hardness Rating
92 Shore A
Compatible With
GTH 150/20K
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
