Zoro Select Plate Caster, 1650 lb. Load, Yellow Wheel P25S-GTH 150K-14-WB - main

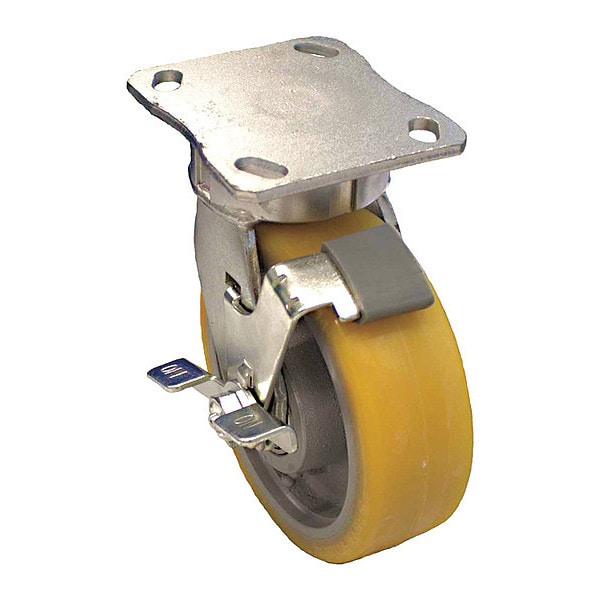

Plate Caster, 1650 lb. Load, Yellow Wheel

  • Mfr # P25S-GTH 150K-14-WB

  • Zoro # G5645199

product price:  $132.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI ICWM
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Number of Wheels
1
Caster Brake Type
Side Brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-GTH 150K-14-WB
Zoro #
G5645199
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2in
Swivel Radius
4 3/4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 7/8 in
Mounting Height
7 7/16 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
5/16in
For Axle Dia.
1/2 in

Details

Standards
ANSI ICWM
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Number of Wheels
1
Caster Brake Type
Side Brake
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. GTH 150/20K
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
Yes
Wheel Color
Yellow
Core Color
Gray
Features
Floor Protective
Non-Marking
Yes
Includes
Complete Caster with Brake
Load Rating
1650 lb
Extended Lead
No
Caster Temp. Range Available
Yes
Item
Swivel Caster with Brake
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Load Rating Range
Medium-Duty
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Tread
Standard
Accessories
Optional: P-DL25-14 (Directional Lock)
Tread Color
Light Brown
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
1500 lb
Series
P25 Series
Caster Mounting Type
Plate
Compatible With
GTH 150/20K
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
92 Shore A
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Brake Location
Side
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 1650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 7/8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
