  11. Plate Caster, 1760 lb. Load, Yellow Wheel
Zoro Select Plate Caster, 1760 lb. Load, Yellow Wheel P25S-UY080K-16 - main

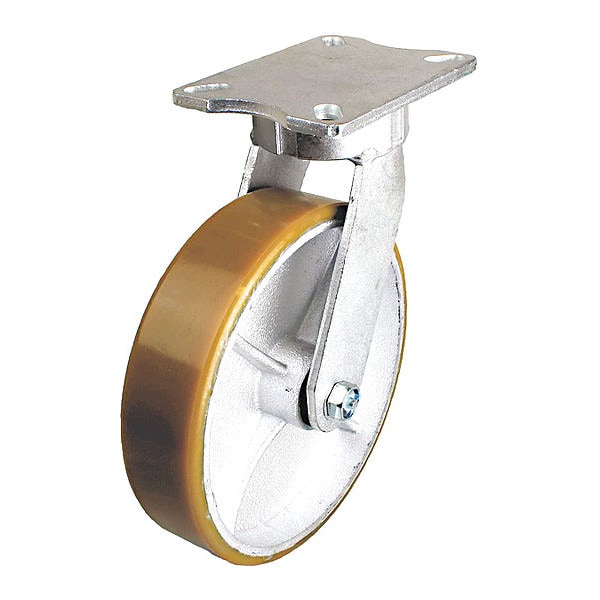

Plate Caster, 1760 lb. Load, Yellow Wheel

  • Mfr # P25S-UY080K-16

  • Zoro # G6544111

product price: $81.89
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-UY080K-16
Zoro #
G6544111
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2in
Swivel Radius
6-1/4 in
Outside Slot Spacing - Width
3.375 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.438 in
Bolt Hole Spacing - Length
2.438 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Length
5.25 in

Details

Item
Kingpinless Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
1760 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Standards
RoHS, ICWM
Includes
Complete Caster
Caster Brake Included
No
Extended Lead
No
Caster Temp. Range Available
Yes
Thread Guards
No
Features
Floor Protective
Wheel Color
Yellow
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. P-UY-080x020/050R
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Swivel Construction
Kingpinless
Wheel Core Material
Cast Iron
Load Rating Range
Medium Duty
Swivel Raceway Type
Kingpinless Single Ball
Swivel Lock Type
No Lock Included
Tread Color
Yellow
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL25-16 (Directional Lock)
Tread
Standard
Load Capacity
1500 lb
Series
P25 Series
Load Capacity - Maximum
1,500 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1760 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
