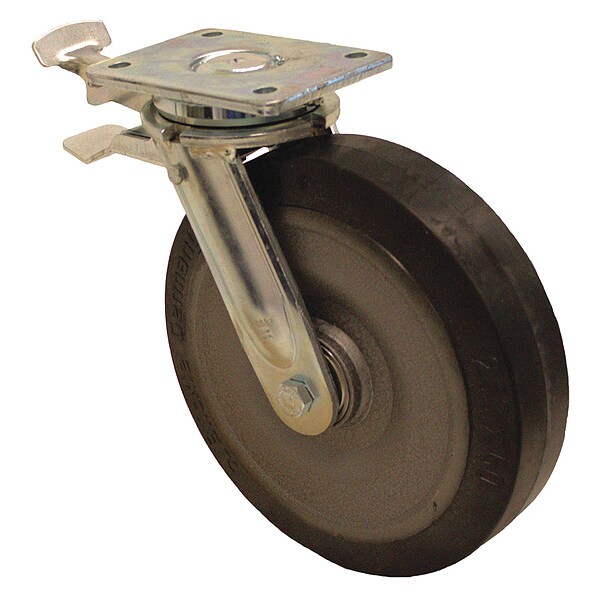

Zoro Select Plate Caster, 1870 lb. Ld Rating, Ball LO-SE 250K-ST-RI4 - main

Plate Caster, 1870 lb. Ld Rating, Ball

  • Mfr # LO-SE 250K-ST-RI4

  • Zoro # G9463592

product price: $466.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
Total Lock
Wheel Dia.
9 13/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LO-SE 250K-ST-RI4
Zoro #
G9463592
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
9 13/16 in
Wheel Width
2 3/8 in
Mounting Height
11 5/8 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
8 mm
Mounting Bolt Dia.
3/8 in
Swivel Radius
195 mm
Overall Height
11-39/64in
Overall Wheel Width
2 3/8 in
Inside Slot Spacing - Width
2.938 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Width
3.188 in
For Axle Dia.
12 mm
Outside Slot Spacing - Length
4.125 in
Inside Slot Spacing - Length
4.125 in

Details

Item
Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
Total Lock
Load Rating
1870 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Thread Guards
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Standards
RoHS, ICWM
Features
Floor Protective
Wheel Color
Black
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. SE 250/25K
Extended Lead
No
Includes
Stop-Top Total-Lock Brake, 4-Position Directional Lock
Swivel Lock Type
4-Position Directional Lock
Wheel Core Material
Steel
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Tread Color
Black
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LO Series
ESD Conductive
No
Load Capacity
850 kg
Tread
Standard
Load Capacity - Maximum
1,870 lb
Compatible With
SE 250/25K
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Brake Location
Face
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 1870 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 9 13/16 in, Wheel Width 2 3/8 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
