Zoro Select Plate Caster, 220 lb. Load Rating LDA-PATH 75G - main

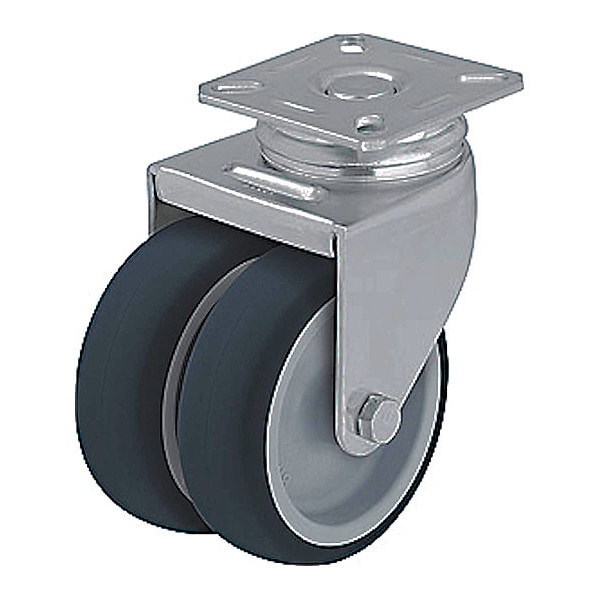

Plate Caster, 220 lb. Load Rating

  • Mfr # LDA-PATH 75G

  • Zoro # G8518190

product price:  $28.59
/ea

Key Features

Thread Guards
No
Mounting Bolt Dia.
7/32 in
Core Color
Gray
Wheel Color
Gray
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LDA-PATH 75G
Zoro #
G8518190
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
7/32 in
Wheel Width
1 in
Wheel Dia.
3 in
Swivel Radius
2 7/8 in
Overall Height
3-63/64in
Mounting Height
4 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Length
60 mm
Mounting Plate Width
60 mm
Overall Wheel Width
1 in
Mounting Plate Thickness
5/64in
Inside Slot Spacing - Width
38 mm
Bolt Hole Spacing - Length
1.563 in
For Axle Dia.
6 mm
Outside Slot Spacing - Width
48 mm
Inside Slot Spacing - Length
38 mm
Outside Slot Spacing - Length
48 mm

Details

Thread Guards
No
Core Color
Gray
Item
Swivel Caster
Wheel Color
Gray
Caster Frame Material
Steel
Load Rating
220 lb
Caster Sub-Type
Swivel
Number of Wheels
2
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Features
Floor Protective, Reduced Swivel Forces
Non-Marking
Yes
Inside Bolt Hole Spacing
40 mm x 40 mm
Replacement Wheel
Mfr. No. PATH 75/8G
Standards
DIN EN 12530
Caster Brake Included
No
Outside Bolt Hole Spacing
46 mm x 46 mm
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
A
Extended Lead
No
Caster Brake Type
No Brake
Wheel/Tread Material
Thermoplastic Rubber
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel Bearing Type
Plain
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Tread Shape
Standard
Wheel/Tread Color
Gray
System of Measurement
Metric
Load Capacity
100 kg
ESD Conductive
No
Tread Color
Dark Gray
Tread
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Series
LDA Series
Compatible With
PATH 75/8G
Wheel Hardness Rating
94 Shore A
Load Capacity - Maximum
220 lb
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
