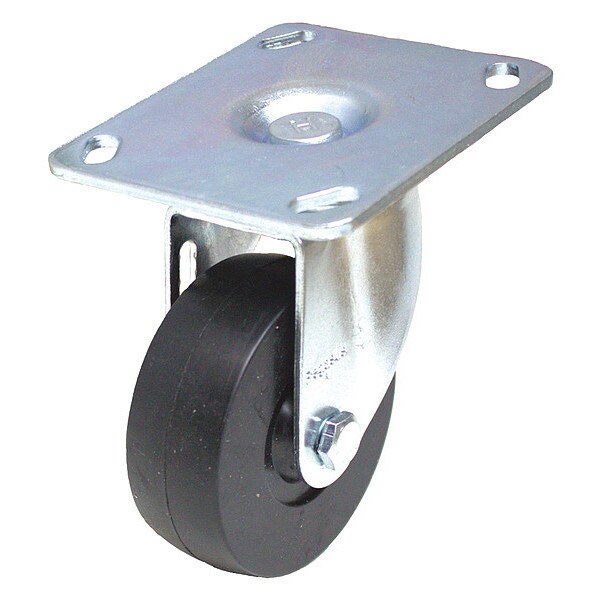

Plate Caster, 250 lb. Ld Rating, Swivel

  • Mfr # P12S-HR035D-P3

  • Zoro # G2146699

product price:
$
8.69
/ea

Key Features

Load Rating
250 lb
Wheel Dia.
3 1/2 in
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Core Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-HR035D-P3
Zoro #
G2146699
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 1/2 in
Swivel Radius
3 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Overall Height
4-11/16"
Mounting Plate Size
3-3/4 in x 4-3/8 in
Mounting Height
4 11/16 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
3 3/4 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
5/32 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in

Details

Load Rating
250 lb
Caster Temp. Range Available
Yes
Item
Plate Caster
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Caster Brake Type
No Brake
Includes
Complete Caster
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Sub-Type
Swivel
Features
Noise Reduction
Caster Brake Included
No
Application
U.S. Postal Service Hampers, Utility Carts
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Plate Hole Pattern
B
Standards
ANSI ICWM
Extended Lead
No
Replacement Wheel
Mfr. No. P-HR-035x013/038D
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Rubber
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light Duty
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel Bearing Type
Delrin
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
ESD Conductive
No
Series
P12 Series
Load Capacity
150 lb
Tread Color
Black
Tread
Standard
Caster Mounting Type
Plate
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Accessories
Optional: P-WB12 035X125 (Brake Kit)
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
80 Shore D
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Wheel Bearing Material
Delrin
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-20 Degrees To 125 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
