  11. Plate Caster, 2500 lb. Load Rating

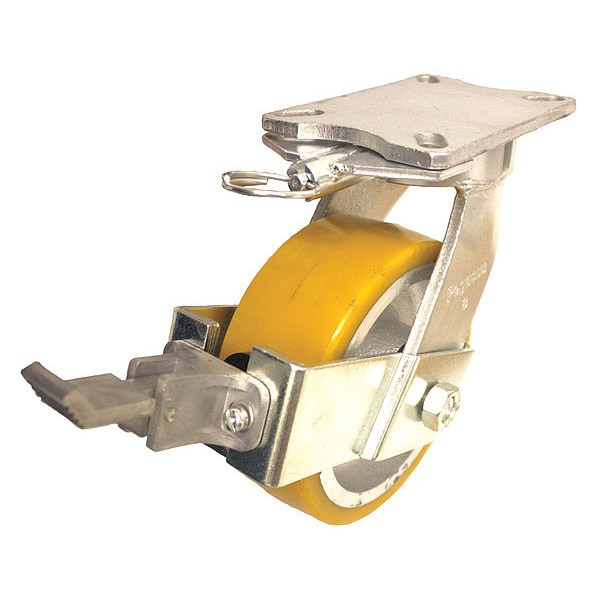

Zoro Select Plate Caster, 2500 lb. Load Rating P27S-UY080R-18-WK-DL - main

Plate Caster, 2500 lb. Load Rating

  • Mfr # P27S-UY080R-18-WK-DL

  • Zoro # G9463857

product price: $241.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-UY080R-18-WK-DL
Zoro #
G9463857
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Plate Thickness
0.374 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-1/16 in
Overall Height
10-1/2in
Inside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Width
4.125 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Mounting Plate Length
5 1/4 in
Inside Slot Spacing - Length
5.25 in
Overall Wheel Width
3 in

Details

Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, No Brake
Load Rating
2500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. P-UY-080x030/075R
Features
Floor Protection
Wheel Color
Yellow
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes
Trailing End Brake, 4-Position Directional Lock
Caster Brake Included
Yes
Thread Guards
No
Extended Lead
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpinless
Swivel Raceway Type
Kingpinless Single Ball
Includes Thread Guards
No
Load Rating Range
Heavy Duty
Swivel Lock Type
Directional Lock
Wheel Core Material
Cast Iron
Tread
Standard
Series
P27 Series
Tread Color
Yellow
Load Capacity
2500 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
2,500 lb
Compatible With
P-UY-080X030/075R
Brake Location
Rear
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type Directional Lock, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
