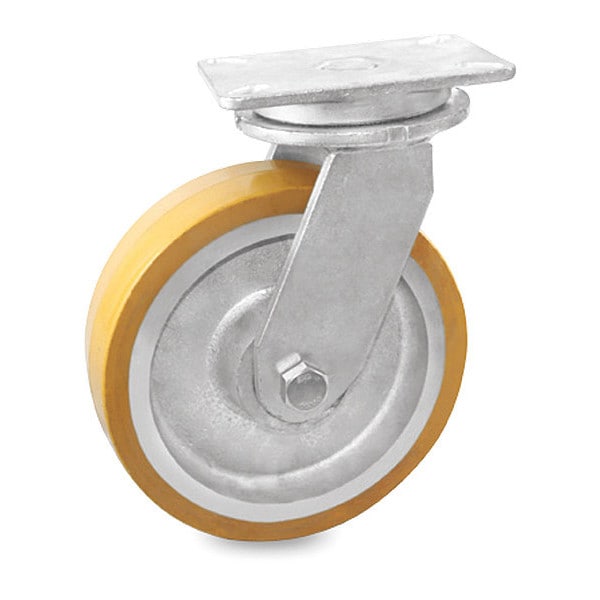

Zoro Select Plate Caster, 3000 lb. Load, Yellow Wheel P29S-UY100K-18 - main

Plate Caster, 3000 lb. Load, Yellow Wheel

  • Mfr # P29S-UY100K-18

  • Zoro # G5612518

product price:  $306.99
/ea
Free Shipping & Returns

Key Features

Swivel Radius
8-1/2 in
Non-Marking
Yes
Caster Brake Included
No
Caster Temp. Range Available
Yes
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P29S-UY100K-18
Zoro #
G5612518
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
8-1/2 in
Wheel Width
3 in
Wheel Dia.
10 in
Mounting Bolt Dia.
1/2 in
Overall Height
12-1/2in
Mounting Height
12 1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Outside Slot Spacing - Width
4.125 in
Outside Slot Spacing - Length
6.125 in
Bolt Hole Spacing - Length
3.375 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
3.375 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
0.315 in
Mounting Plate Length
7 1/4 in
Mounting Plate Width
5 1/4 in

Details

Non-Marking
Yes
Caster Brake Included
No
Caster Temp. Range Available
Yes
Item
Swivel Caster
Caster Brake Type
No Brake
Wheel Color
Yellow
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Replacement Wheel
Mfr. No. P-UY-100x030/075K
Core Color
Gray
Caster Plate Hole Pattern
A
Features
Floor Protective
Number of Wheels
1
Load Rating
3000 lb
Extended Lead
No
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Application
Box Trucks, Portable Storage Racks, Heavy Production Fixtures/Jigs, Die Tables, Machinery Dollies, Portable Work Benches, Power Drawn Equipment
Includes
Complete Caster
Thread Guards
No
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Zinc Plated
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Wheel Bearing Type
Precision Ball
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Number of Mounting Holes
4
Load Rating Range
Heavy Duty
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Caster Mounting Type
Plate
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P29 Series
Tread Color
Yellow
Load Capacity
3000 lb
Tread
Standard
Accessories
Optional: P-DL29-18 (Directional Lock)
Load Capacity - Maximum
3,000 lb
Wheel Hardness Rating
92 Shore A
Compatible With
P-UY-100X030/075K
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
