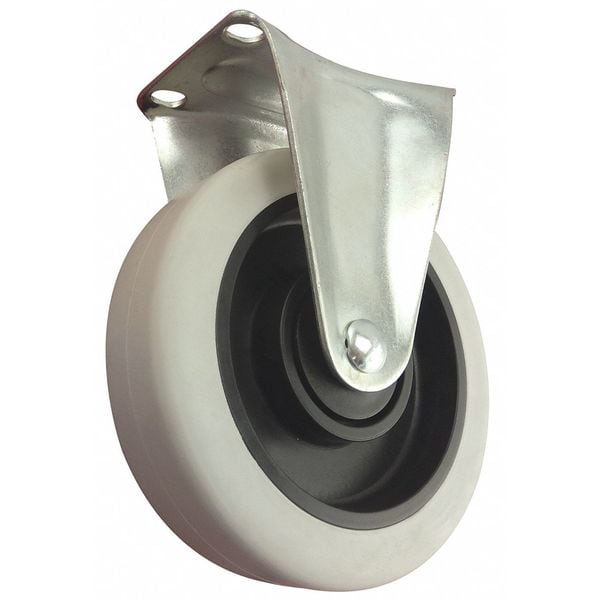

Plate Caster, 5" Wheel Dia, 400 lb., Rigid

  • Mfr # 406P65

  • Zoro # G7344878

product price:
$
28.19
/ea

Key Features

Number of Wheels
1
Features
American Standard Plate Size
Core Color
Black
Non-Marking
Yes
Thread Guards
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
406P65
Zoro #
G7344878
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Overall Height
6-1/8"
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/2 in
Mounting Plate Size
2 1/2 in x 3 3/4 in
Mounting Height
6 1/8 in
Mounting Plate Thickness
3/32in

Details

Number of Wheels
1
Features
American Standard Plate Size
Core Color
Black
Non-Marking
Yes
Thread Guards
Yes
Load Rating
400 lb
Caster Plate Hole Pattern
C
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Extended Lead
No
Standards
ANSI ICWM
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Item
Plate Caster
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Wheel Color
Gray
Caster Brake Included
No
Caster Frame Material
Steel
Application
Commercial, General Purpose, Industrial, Institutional
Caster Brake Type
No Brake
Includes Thread Guards
Yes
Load Rating Range
300 to 999 lb
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Tread Shape
Standard
Wheel Core Material
Polyolefin
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity - Maximum
400 lb
Wheel Hardness Rating
65 Shore A
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
120 Degrees F
Swivel Raceway Type
Double Ball

Description

Rigid, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
