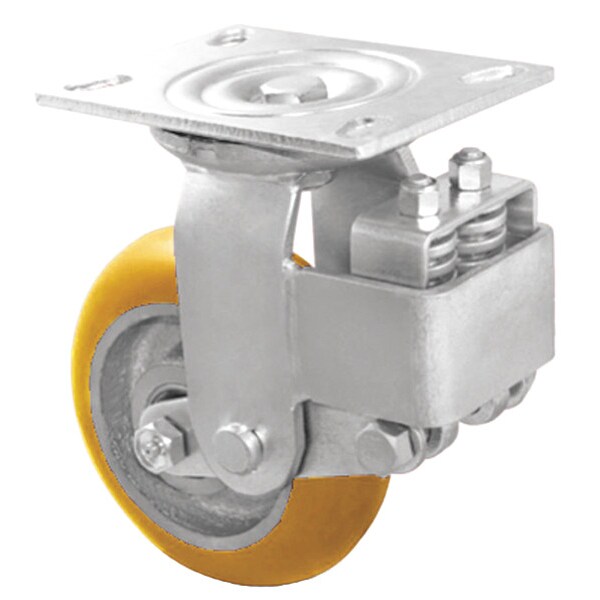

Zoro Select Plate Caster, 500 lb. Ld Rating, Yl Wheel P22R-UA080R-14 - main

Plate Caster, 500 lb. Ld Rating, Yl Wheel

  • Mfr # P22R-UA080R-14

  • Zoro # G2146954

product price:  $102.99
/ea
Free Shipping & Returns

Key Features

Load Rating
500 lb
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Number of Wheels
1
Caster Brake Type
No Brake
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P22R-UA080R-14
Zoro #
G2146954
UPC #
-
Country of Origin
China

Dimensions

Overall Height
10-1/2in
Wheel Width
2 in
Wheel Dia.
8 in
Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
10 1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
0.236 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in

Details

Load Rating
500 lb
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Number of Wheels
1
Caster Brake Type
No Brake
Inside Bolt Hole Spacing
3 in x 3 in
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Includes
Complete Caster
Frame Finish
Zinc Plated
Non-Marking
Yes
Wheel Color
Yellow
Features
Floor Protective, Noise Reduction, Shock Absorbsion
Extended Lead
No
Caster Brake Included
No
Caster Plate Hole Pattern
B
Core Color
Silver
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Item
Rigid Caster
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-UA-080x020/050R
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Load Rating Range
Medium Duty
Wheel Core Material
Aluminum
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Operating Temperature Range
-15 Degrees To 160 Degrees F
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Caster Mounting Type
Plate
Tread Color
Yellow
Max. Spring Deflection
55/64 in
Tread
Standard
Load Capacity
500 lb
Series
P22 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
92 Shore A
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Maximum Compression Force
1000 lb

Description

Rigid, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
