  11. Plate Caster, 5400 lb. Ld Rating, Gy Wheel

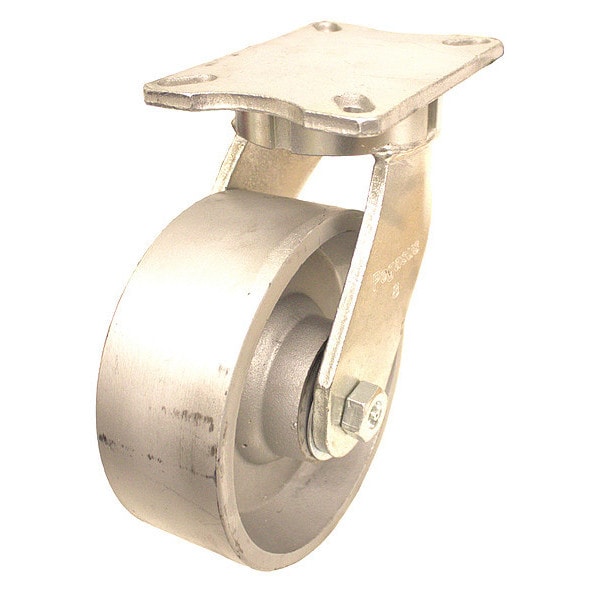

Zoro Select Plate Caster, 5400 lb. Ld Rating, Gy Wheel P27S-D100R-18 - main

Plate Caster, 5400 lb. Ld Rating, Gy Wheel

  • Mfr # P27S-D100R-18

  • Zoro # G6545213

product price: $293.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Ductile Iron
Caster Brake Type
No Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-D100R-18
Zoro #
G6545213
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
12 1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Plate Thickness
0.374 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
8-3/8 in
Overall Height
12-1/2in
Mounting Plate Length
7 1/4 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Width
5 1/4 in
Bolt Hole Spacing - Length
3.375 in
Outside Slot Spacing - Width
4.125 in
Overall Wheel Width
3 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Length
5.25 in

Details

Item
Kingpinless Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Ductile Iron
Caster Brake Type
No Brake
Load Rating
5400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
145 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Caster Brake Included
No
Frame Finish
Zinc Plated
Thread Guards
No
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Includes
Complete Caster
Wheel Color
Gray
Features
Push/Pull Force Reduction
Caster Temp. Range Available
Yes
Extended Lead
No
Replacement Wheel
Mfr. No. P-D-100x030/075R
Load Rating Range
Heavy Duty
Swivel Lock Type
No Lock Included
Operating Temperature Range
Up To 800 Degrees F
Wheel/Tread Hardness Rating
Extra Hard
Swivel Raceway Type
Kingpinless Single Ball
Wheel Core Material
Ductile Iron
Includes Thread Guards
No
Swivel Construction
Kingpinless
Tread Color
Black
Accessories
Optional: P-DL27-18 (Directional Lock)
ESD Conductive
No
Tread
Standard
Series
P27 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
6000 lb
Load Capacity - Maximum
5,400 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant

Description

Swivel, Plate Caster, Load Rating 5400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
