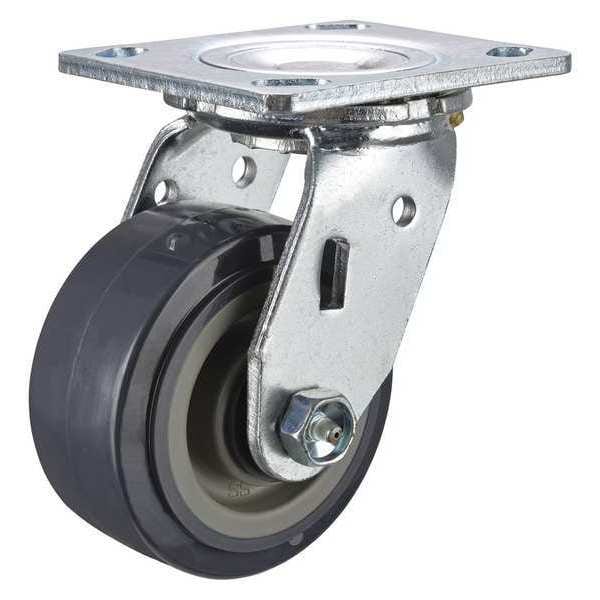

Zoro Select Plate Caster, 600 lb. Ld Rating, Zn Plate P21S-UP040R-14 - main

Plate Caster, 600 lb. Ld Rating, Zn Plate

  • Mfr # P21S-UP040R-14

  • Zoro # G2479412

product price:  $25.55
/ea

Key Features

Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Caster Sub-Type
Swivel
Wheel Color
Gray
Replacement Wheel
Mfr. No. P-UP-040x020/050R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-UP040R-14
Zoro #
G2479412
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Swivel Radius
3-3/8 in
Overall Height
5-5/8in
Wheel Width
2 in
Stem Dia.
No Stem
Mounting Plate Size
4in x 4-1/2in
Mounting Height
5 5/8 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 in
Mounting Plate Thickness
1/4in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in

Details

Caster Sub-Type
Swivel
Wheel Color
Gray
Replacement Wheel
Mfr. No. P-UP-040x020/050R
Thread Guards
No
Number of Wheels
1
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Caster Brake Included
No
Frame Finish
Zinc Plated
Core Color
Gray
Standards
ANSI ICWM
Non-Marking
Yes
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
600 lb
Extended Lead
No
Caster Temp. Range Available
Yes
Item
Swivel Caster
Tread Color
Gray
System of Measurement
Inch
Tread
Standard
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Series
P21 Series
Accessories
Optional: P-DL21-14 (Directional Lock)
Load Capacity
600 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Compatible With
P-UP-040X020/050R
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
55 Shore D
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
